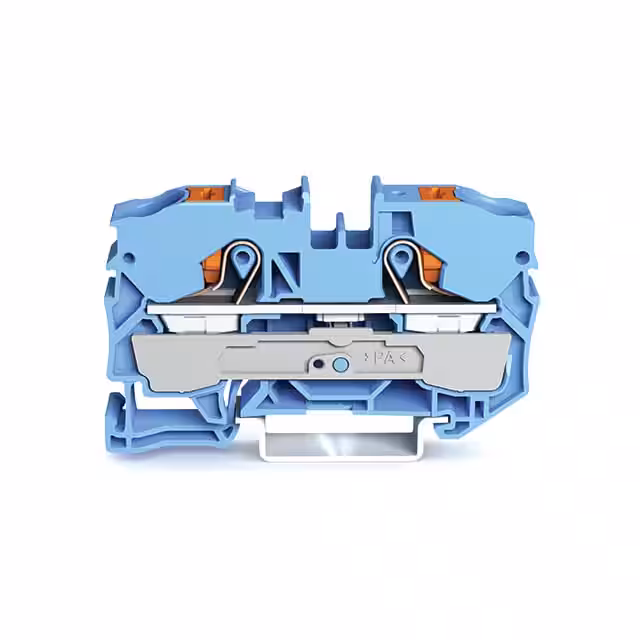

2210-1204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Pins per row :

2

Length :

67.60mm

Features :

+ latchkey,+ CAGE CLAMP®

Connectable conductor cross section solid-core :

2.5 - 16

Nominal current - rounded value :

57A

Package :

Box

Connectable conductor cross section fine-strand with cable end sleeve :

2.5 - 10

Connection :

Push-in connector

Connectable conductor cross section multi-wired :

0.5 - 10

Cross section (flexible) (max.) :

10mm²

Min. stripping length :

17mm

Cross section (inflexible) (max.) :

16mm²

No. of rows :

1

AWG (min.) :

20

Terminal - Width :

10.0mm

Voltage - IEC :

800V

AWG max. :

6

RoHS :

yes

Cross section (inflexible) (min.) :

0.50mm²

Width :

10mm

Termination Style :

Push In, Spring

Number of Levels :

1

Content :

25pc(s)

Disconnect Type :

-

Stripping Length :

17mm ~ 19mm

Dim :

(L x W x H) 67.60 x 10 x 36.90 mm

Inflammability class of insulation material according to with UL94 :

V0

Rated current In :

57

Depth :

36.9

Wire Gauge or Range - AWG :

6-20 AWG

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Fuse Type :

-

Series :

2210

Nominal voltage :

800V

Height :

36.90mm

Approvals :

CSA, UL

Nominal current :

57A

Industrial packaging :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 16

Material Flammability Rating :

UL94 V-0

Manufacturer part # :

2210-1204

Number of Positions :

2

Voltage - UL :

600V

Clamp width :

10mm

Wire Gauge or Range - mm² :

0.5-16mm²

Number of Circuits :

1

Mounting Type :

DIN Rail

Type :

WAGO GmbH and Co. KG

Cross section (flexible) (min.) :

0.50mm²

Rated Current :

57A

Current - UL :

65 A

Termination Method :

Push-In Cage Clamp

Current - IEC :

76 A

Product Status :

Active

Stripping length (max.) :

19mm

Manufacturer :

Wago

Color :

Blue

Rated Voltage :

800V
