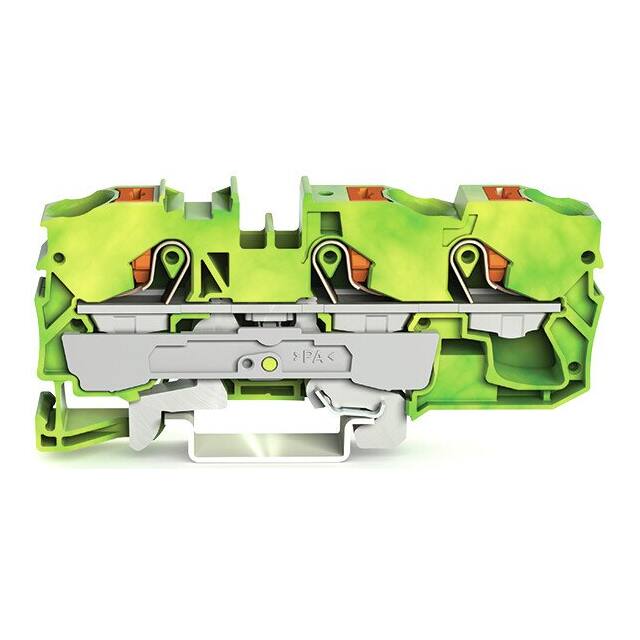

2210-1307

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Type :

Grounding Block

Number of Circuits :

1

Industrial packaging :

yes

Depth :

36.9

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 16

Content :

25pc(s)

AWG max. :

6

Manufacturer :

Wago

Inflammability class of insulation material according to with UL94 :

V0

Number of Levels :

1

Nominal current :

57A

Cross section (flexible) (min.) :

0.50mm²

Package :

Box

Voltage - UL :

-

Approvals :

CSA, UL

AWG (min.) :

20

Stripping Length :

17mm ~ 19mm

Cross section (flexible) (max.) :

10mm²

Color :

Green, Yellow

Terminal - Width :

10.0mm

Connectable conductor cross section multi-wired :

0.5 - 10

Length :

89mm

Clamp width :

10mm

Cross section (inflexible) (min.) :

0.50mm²

Connection :

Push-in connector

Wire Gauge or Range - mm² :

0.5-16mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Fuse Type :

-

Stripping length (max.) :

19mm

Manufacturer part # :

2210-1307

RoHS :

yes

Voltage - IEC :

-

No. of rows :

1

Connectable conductor cross section solid-core :

2.5 - 16

Connectable conductor cross section fine-strand with cable end sleeve :

2.5 - 10

Nominal current - rounded value :

57A

Width :

10mm

Series :

2210

Termination Method :

Push-In Cage Clamp

Wire Gauge or Range - AWG :

6-20 AWG

Min. stripping length :

17mm

Disconnect Type :

-

Rated Voltage :

800V

Number of Positions :

3

Material Flammability Rating :

UL94 V-0

Features :

+ latchkey,+ CAGE CLAMP®

Termination Style :

Push In, Spring

Product Status :

Active

Cross section (inflexible) (max.) :

16mm²

Mounting Type :

DIN Rail

Pins per row :

3

Rated Current :

57A

Dim :

(L x W x H) 89 x 10 x 36.90 mm

Height :

36.90mm
