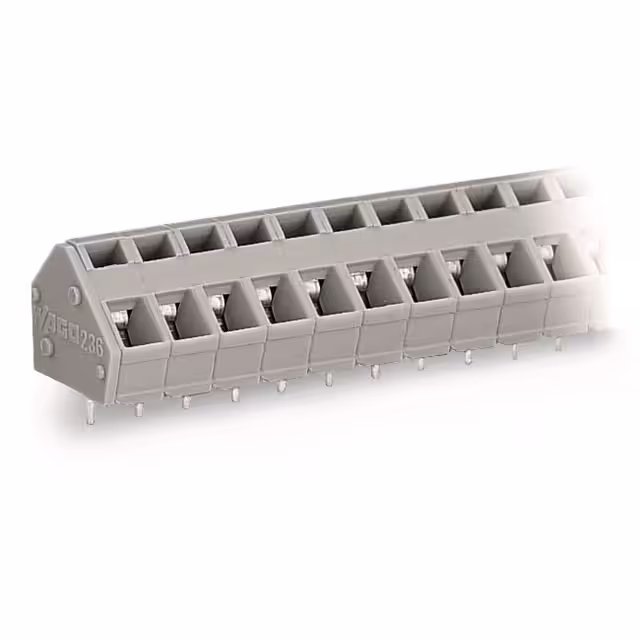

236-148

Manufacturer :

WAGO

Product Category :

Wire to Board

ECCN (US) :

EAR99

Type of fastening :

Solder

Approvals :

UR;CSA

Stripping length (max.) :

6mm

Temperature Range :

-76 to 221 Degrees F

Package :

Box

Connection :

Spring-loaded terminal,Print

Positions Per Level :

48

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Connection Type :

Spring Clamp

Manufacturer part # :

236-148

Nominal voltage :

320V

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 2.5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Wire Gauge :

12-28 AWG

Enclosure material :

Polyamide

PPAP :

No

Content :

20pc(s)

HTS :

8536.90.40.00

Product Status :

Active

Contact Material - Plating :

Electrolytic Copper - Tin Plated

CS :

5mm,5.08mm

AWG max. :

12

Cross section (inflexible) (min.) :

0.08mm²

Nominal current :

24A

Over voltage category :

III

Screw Thread :

-

No. of rows :

1

Wire protection :

yes

Number of Levels :

1

Rated surge voltage :

4

Width :

242.30mm

Mating Orientation :

45° (135°) Angle with Board

Type :

236-148

Pitch :

0.200 (5.08mm)

Voltage :

300 V

Inflammability class of insulation material according to with UL94 :

V0

Pollution degree :

2

Series :

236

Cross section (flexible) (max.) :

2.50mm²

Operating Temperature :

-60°C ~ 105°C

Mounting Type :

PCB Mount

Rated current In :

24

Automotive :

No

EU RoHS :

Compliant

Manufacturer :

Wago

Cross section (flexible) (min.) :

0.08mm²

Industrial packaging :

yes

Composition :

Polyamide

Cross section (inflexible) (max.) :

2.50mm²

Current :

15 A

Packaging type :

Other

AWG (min.) :

28

Connectable conductor cross section solid-core :

0.08 - 2.5

Housing Material :

Polyamide (PA66), Nylon 6/6

Color :

Gray

Number of Poles :

48

Clamp Material - Plating :

Steel - Nickel Plated

Length :

14.00mm

RoHS :

yes

Nominal current - rounded value :

24A

Actuation direction :

At an angle (to the PCB)

Pin Length :

4 MilliMeters

Pins per row :

48

Features :

+ CAGE CLAMP®

Torque - Screw :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Height :

17.00mm

Min. stripping length :

5mm

Screw Material - Plating :

-
