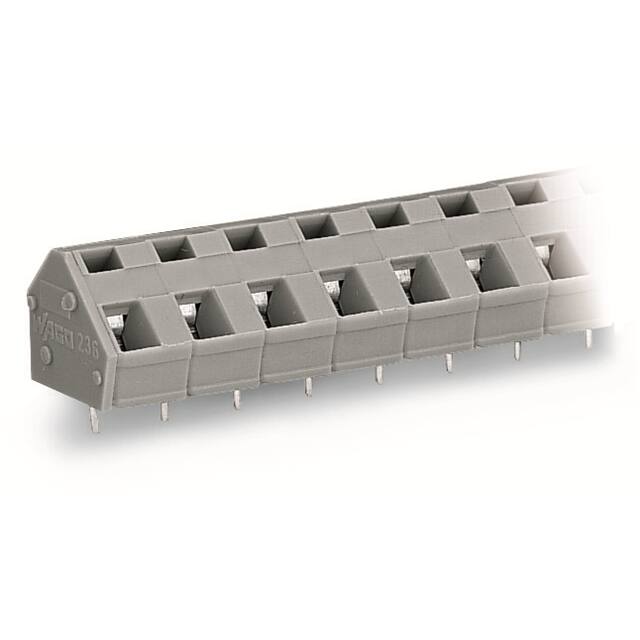

236-224

Manufacturer :

WAGO

Product Category :

Wire to Board

Enclosure material :

Polyamide

Pitch :

0.300 (7.62mm)

Connection Type :

Spring Clamp

No. of rows :

1

Manufacturer :

Wago

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Housing Material :

Polyamide (PA66), Nylon 6/6

Cross section (inflexible) (min.) :

0.08mm²

Wire Gauge :

12-28 AWG

Composition :

Polyamide

Width :

182.30mm

Torque - Screw :

-

Length :

14.00mm

Positions Per Level :

24

Wire protection :

yes

Manufacturer part # :

236-224

Series :

236

Nominal current - rounded value :

24A

Pins per row :

24

Current :

15 A

Nominal current :

24A

Approvals :

CSA, UR

Package :

Box

CS :

7.50mm,7.62mm

Actuation direction :

At an angle (to the PCB)

Clamp Material - Plating :

Steel - Nickel Plated

Type :

236-224

Cross section (flexible) (min.) :

0.08mm²

Number of Poles :

24

EU RoHS :

Compliant

PPAP :

No

Number of Levels :

1

Stripping length (max.) :

6mm

Nominal voltage :

630V

Connection :

Spring-loaded terminal,Print

Cross section (inflexible) (max.) :

2.50mm²

Color :

Gray

HTS :

8536.90.40.00

Screw Material - Plating :

-

ECCN (US) :

EAR99

Features :

+ CAGE CLAMP®

RoHS :

yes

Product Status :

Active

Content :

20pc(s)

AWG (min.) :

28

Operating Temperature :

-60°C ~ 105°C

Mounting Type :

PCB Mount

Screw Thread :

-

Pin Length :

4 mm

Cross section (flexible) (max.) :

2.50mm²

AWG max. :

12

Temperature Range :

-76-221 °F

Automotive :

No

Voltage :

300 V

Min. stripping length :

6mm

Mating Orientation :

45° (135°) Angle with Board

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Industrial packaging :

yes

Height :

17.00mm
