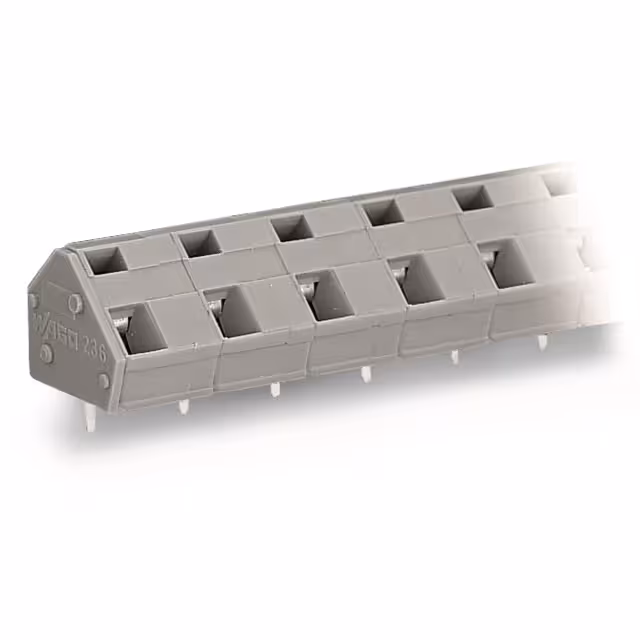

236-324

Manufacturer :

WAGO

Product Category :

Wire to Board

ECCN (US) :

EAR99

Type :

236-324

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Mounting Type :

PCB Mount

Length :

14.00mm

Cross section (inflexible) (max.) :

2.50mm²

Screw Material - Plating :

-

RoHS :

yes

Manufacturer :

Wago

Cross section (inflexible) (min.) :

0.08mm²

Clamp Material - Plating :

Steel - Nickel Plated

Nominal voltage :

1000V

Connection Type :

Spring Clamp

HTS :

8536.90.40.00

No. of rows :

1

Series :

236

Features :

+ CAGE CLAMP®

Height :

17.00mm

Voltage :

300 V

Positions Per Level :

24

Cross section (flexible) (max.) :

2.50mm²

Mating Orientation :

45° (135°) Angle with Board

Number of Poles :

24

Min. stripping length :

5mm

Product Status :

Active

Number of Levels :

1

PPAP :

No

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Pins per row :

24

Screw Thread :

-

Pitch :

0.400 (10.16mm)

AWG (min.) :

28

Current :

15 A

Composition :

Polyamide

Package :

Box

AWG max. :

12

Width :

242.30mm

Approvals :

CSA, UR

Cross section (flexible) (min.) :

0.08mm²

Pin Length :

4 mm

Industrial packaging :

yes

Manufacturer part # :

236-324

Content :

20pc(s)

Temperature Range :

-76-221 °F

Wire protection :

yes

EU RoHS :

Compliant

Torque - Screw :

-

Color :

Gray

Wire Gauge :

12-28 AWG

Stripping length (max.) :

6mm

Connection :

Spring-loaded terminal,Print

Automotive :

No

Operating Temperature :

-60°C ~ 105°C

CS :

10mm,10.16mm
