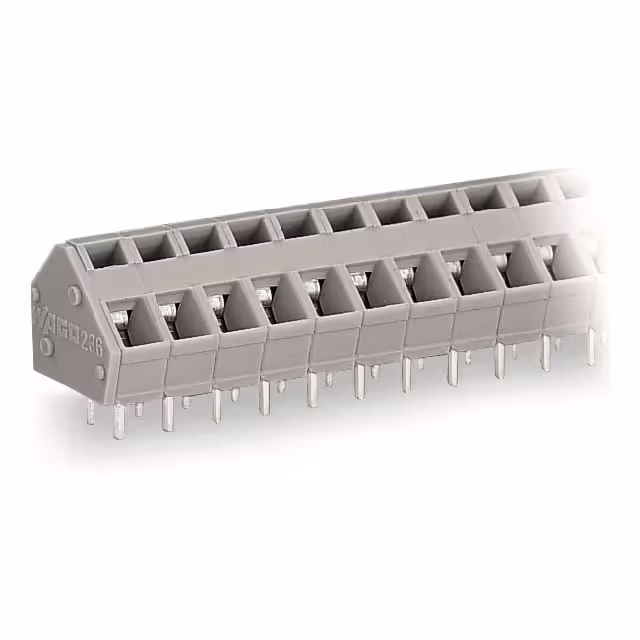

236-424

Manufacturer :

WAGO

Product Category :

Wire to Board

Stripping length (max.) :

6mm

Wire Gauge :

12-28 AWG

Depth :

14mm

CS :

5mm,5.08mm

Connectable conductor cross section solid-core :

0.08 - 2.5

No. of rows :

1

Nominal voltage :

320V

Number of Poles :

24

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Features :

+ CAGE CLAMP®

Weight :

20.7g

Voltage :

300 V

AWG (min.) :

28

Pins per row :

24

Package :

Box

Type :

236-424

Positions Per Level :

24

Approvals :

UR;CSA

Industrial packaging :

yes

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Type of fastening :

Solder

Pitch :

0.200 (5.08mm)

Pollution degree :

2

Wire protection :

yes

Color :

Gray

Series :

236

Mating Orientation :

45° (135°) Angle with Board

Rated current In :

24

Number of Levels :

1

Composition :

Polyamide

Torque - Screw :

-

Cross section (inflexible) (min.) :

0.08mm²

Screw Material - Plating :

-

Height :

17.00mm

Length :

14.00mm

AWG max. :

12

Connectable conductor cross section multi-wired :

0.08 - 2.5

Min. stripping length :

10mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Cross section (inflexible) (max.) :

2.50mm²

Manufacturer part # :

236-424

Connection Type :

Spring Clamp

Rated surge voltage :

4

Width :

122.30mm

Clamp Material - Plating :

Steel - Nickel Plated

Screw Thread :

-

Temperature Range :

-76 to 221 Degrees F

Manufacturer :

Wago

Mounting Type :

PCB Mount

Cross section (flexible) (max.) :

2.50mm²

Inflammability class of insulation material according to with UL94 :

V0

Pin Length :

4 MilliMeters

Current :

15 A

RoHS :

yes

Product Status :

Active

Over voltage category :

III

Connection :

Spring-loaded terminal,Print

Operating Temperature :

-60°C ~ 105°C

Packaging type :

Other

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Cross section (flexible) (min.) :

0.08mm²

Content :

40pc(s)
