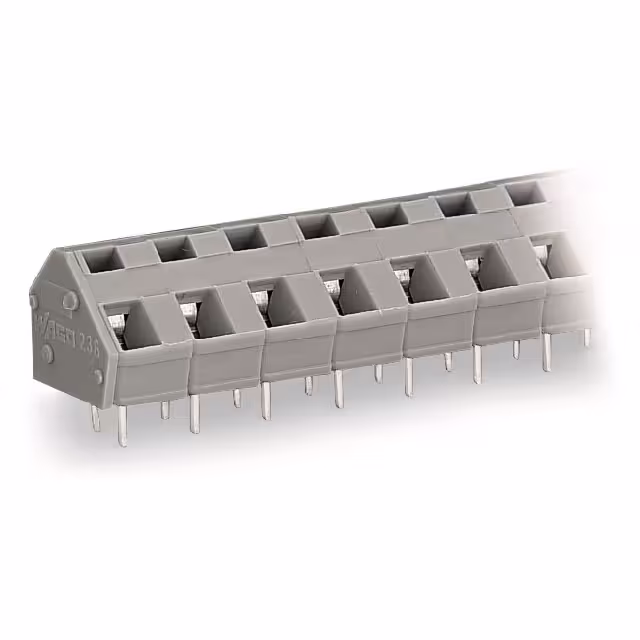

236-502

Manufacturer :

WAGO

Product Category :

Wire to Board

Packaging type :

Other

Number of Levels :

1

Rated surge voltage :

6

Pitch :

0.300 (7.62mm)

RoHS :

yes

Manufacturer part # :

236-502

Cross section (flexible) (max.) :

2.50mm²

Positions Per Level :

2

Height :

17.00mm

Content :

280pc(s)

Composition :

Polyamide

Cross section (inflexible) (max.) :

2.50mm²

Clamp Material - Plating :

Steel - Nickel Plated

Voltage :

300 V

Screw Material - Plating :

-

Nominal current :

24A

Inflammability class of insulation material according to with UL94 :

V0

Current :

15 A

Manufacturer :

Wago

Housing Material :

Polyamide (PA66), Nylon 6/6

Connection :

Spring-loaded terminal,Print

Length :

14.00mm

Approvals :

UR;CSA

Package :

Box

Actuation direction :

At an angle (to the PCB)

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Weight :

2.27g

Stripping length (max.) :

6mm

Wire Gauge :

12-28 AWG

Type of fastening :

Solder

Industrial packaging :

yes

Type :

236-502

No. of rows :

1

AWG max. :

12

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Nominal voltage :

630V

Temperature Range :

-76 to 221 Degrees F

Wire protection :

yes

Pins per row :

2

AWG (min.) :

28

Rated current In :

24

CS :

7.50mm,7.62mm

Cross section (inflexible) (min.) :

0.08mm²

Series :

236

Product Status :

Active

Number of Poles :

2

Depth :

14mm

Connectable conductor cross section solid-core :

0.08 - 2.5

Color :

Gray

Screw Thread :

-

Cross section (flexible) (min.) :

0.08mm²

Operating Temperature :

-60°C ~ 105°C

Min. stripping length :

6mm

Over voltage category :

III

Features :

+ CAGE CLAMP®

Nominal current - rounded value :

24A

Pollution degree :

2

Mounting Type :

PCB Mount

Mating Orientation :

45° (135°) Angle with Board

Width :

17.30mm

Enclosure material :

Polyamide

Pin Length :

4 MilliMeters

Torque - Screw :

-

Connectable conductor cross section multi-wired :

0.08 - 2.5

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Connection Type :

Spring Clamp
