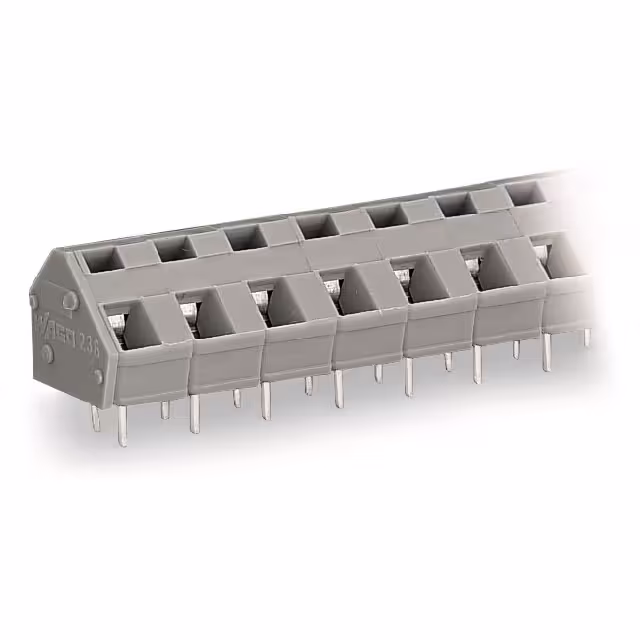

236-504

Manufacturer :

WAGO

Product Category :

Wire to Board

Number of Poles :

4

Color :

Gray

Composition :

Polyamide

Termination Method :

Solder

Manufacturer :

Wago

Pin Length :

4 mm

Product Height (mm) :

13(mm)

Torque - Screw :

-

Wire protection :

yes

Connectable conductor cross section multi-wired :

0.08 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Temperature Range :

-76-221 °F

Packaging type :

Other

Mating Orientation :

45° (135°) Angle with Board

Over voltage category :

III

Positions Per Level :

4

Mounting Type :

PCB Mount

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

CS :

7.50mm,7.62mm

Product Length (mm) :

32.3(mm)

Connectable conductor cross section solid-core :

0.08 - 2.5

Rad Hardened :

No

Type :

Terminal Block

Clamp Material - Plating :

Steel - Nickel Plated

Manufacturer part # :

236-504

Series :

236

Pitch :

0.300 (7.62mm)

Housing Color :

Gray

Stripping length (max.) :

6mm

RoHS :

yes

Current :

15 A

Connection :

Spring-loaded terminal,Print

Min. stripping length :

6mm

Housing Material :

Polyamide 6/6

Features :

+ CAGE CLAMP®

Product Status :

Active

Width :

32.30mm

AWG max. :

12

Contact Plating :

Tin

Contact Material :

Electrolytic Copper

Height :

17.00mm

Operating Voltage (Max) :

400V

Rated surge voltage :

6

Cross section (flexible) (min.) :

0.08mm²

Content :

140pc(s)

Cross section (inflexible) (max.) :

2.50mm²

Inflammability class of insulation material according to with UL94 :

V0

No. of rows :

1

Voltage :

300 V

Rated current In :

24

Type of fastening :

Solder

Screw Material - Plating :

-

Cross section (inflexible) (min.) :

0.08mm²

Packaging :

Box

Enclosure material :

Polyamide

Number of Contact Rows :

1

Package :

Box

Connection Type :

Spring Clamp

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Weight :

4.508g

Screw Thread :

-

Pins per row :

4

Mounting Style :

Through Hole

Operating Temperature :

-60°C ~ 105°C

Length :

14.00mm

Wire Gauge :

12-28(AWG)

Cross section (flexible) (max.) :

2.50mm²

AWG (min.) :

28

Industrial packaging :

yes

Actuation direction :

At an angle (to the PCB)

Nominal current - rounded value :

24A

Contact Pitch (mm) :

7.5(mm)

Approvals :

CSA, UR

Depth :

14mm

Product Depth (mm) :

14(mm)

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Nominal current :

24A

Pollution degree :

2

Nominal voltage :

630V

Number of Levels :

1

Number of Contacts :

4(POS)
