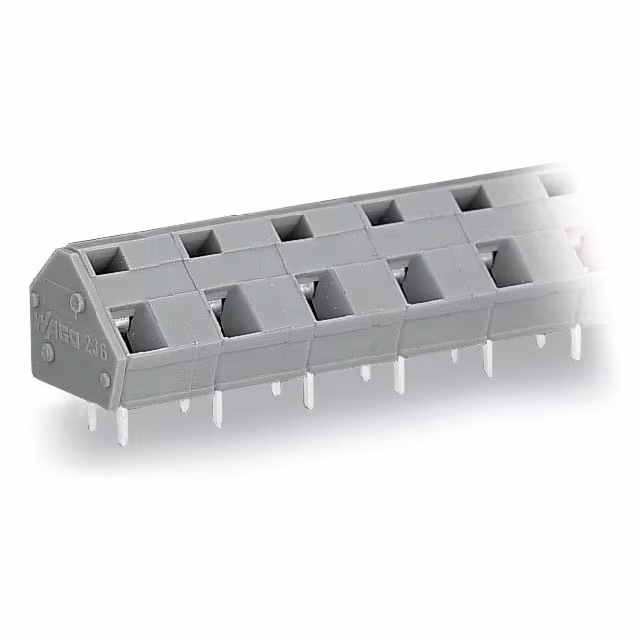

236-612

Manufacturer :

WAGO

Product Category :

Wire to Board

Height :

17.00mm

Number of Levels :

1

Manufacturer :

Wago

Current :

15 A

Enclosure material :

Polyamide

Packaging type :

Other

AWG (min.) :

28

Mounting Type :

PCB Mount

Type :

236-612

RoHS :

yes

Composition :

Polyamide

Nominal voltage :

1000V

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Weight :

15.35g

Pollution degree :

2

Min. stripping length :

6mm

Content :

40pc(s)

Nominal current - rounded value :

24A

Over voltage category :

III

Stripping length (max.) :

13mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Cross section (inflexible) (max.) :

2.50mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Depth :

14mm

Screw Thread :

-

Wire protection :

yes

Mating Orientation :

45° (135°) Angle with Board

Pins per row :

12

Operating Temperature :

-60°C ~ 105°C

Number of Poles :

12

Voltage :

300 V

Rated surge voltage :

8

Wire Gauge :

12-28 AWG

Connectable conductor cross section multi-wired :

0.08 - 2.5

Color :

Gray

Approvals :

UR;CSA

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Nominal current :

24A

Industrial packaging :

yes

Connection :

Spring-loaded terminal,Print

Connection Type :

Spring Clamp

Features :

+ CAGE CLAMP®

Cross section (flexible) (min.) :

0.08mm²

CS :

10mm,10.16mm

No. of rows :

1

Series :

236

Torque - Screw :

-

Length :

14.00mm

Screw Material - Plating :

-

Pin Length :

4 MilliMeters

Product Status :

Active

Type of fastening :

Solder

Rated current In :

24

Pitch :

0.400 (10.16mm)

Width :

122.30mm

Clamp Material - Plating :

Steel - Nickel Plated

Cross section (inflexible) (min.) :

0.08mm²

Manufacturer part # :

236-612

Actuation direction :

At an angle (to the PCB)

Positions Per Level :

12

Connectable conductor cross section solid-core :

0.08 - 2.5

AWG max. :

12

Inflammability class of insulation material according to with UL94 :

V0

Package :

Box

Temperature Range :

-76 to 221 Degrees F

Cross section (flexible) (max.) :

2.50mm²
