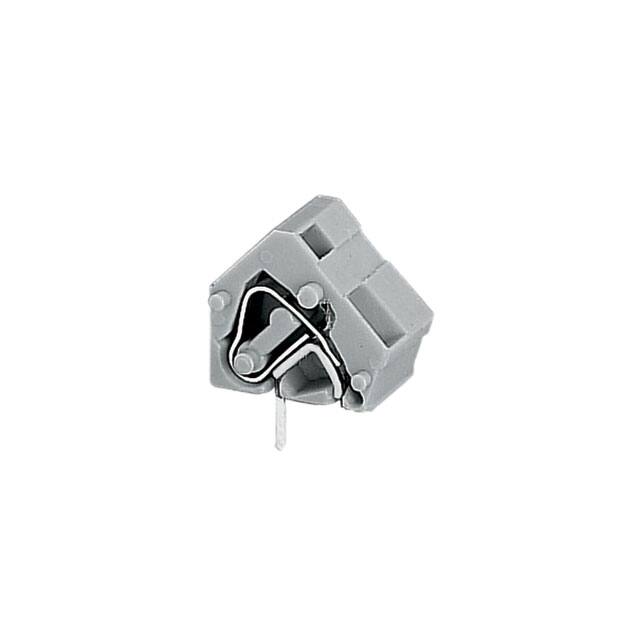

236-737

Manufacturer :

WAGO

Product Category :

Wire to Board

Connectable conductor cross section solid-core :

0.08 - 2.5

Width :

17.00mm

Min. stripping length :

10mm

Temperature Range :

-76 to 221 Degrees F

Clamp Material - Plating :

Steel - Nickel Plated

Voltage :

300 V

Cross section (flexible) (min.) :

0.08mm²

Mating Orientation :

45° (135°) Angle with Board

Connection Type :

Spring Clamp

Pin Length :

4 MilliMeters

Actuation direction :

At an angle (to the PCB)

RoHS :

yes

Packaging type :

Other

Content :

300pc(s)

Rated current In :

24

Height :

14.00mm

Mounting Type :

PCB Mount

Type :

236-737

Current :

15 A

CS :

10mm,10.16mm

Pins per row :

1

ECCN (US) :

EAR99

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Cross section (flexible) (max.) :

2.50mm²

Pitch :

-

Contact Material - Plating :

Electrolytic Copper - Tin Plated

PPAP :

No

EU RoHS :

Compliant

Nominal current :

24A

Approvals :

CSA;UL

Color :

Light Green

AWG max. :

12

Over voltage category :

III

Series :

236

Connectable conductor cross section multi-wired :

0.08 - 2.5

Cross section (inflexible) (max.) :

2.50mm²

No. of rows :

1

Type of fastening :

Solder

Automotive :

No

HTS :

8536.90.40.00

Pollution degree :

2

Cross section (inflexible) (min.) :

0.08mm²

Number of Levels :

1

Inflammability class of insulation material according to with UL94 :

V0

Wire protection :

yes

Manufacturer part # :

236-737

Connection :

Spring-loaded terminal,Print

Length :

12.20mm

Composition :

Polyamide

Screw Thread :

-

AWG (min.) :

28

Stripping length (max.) :

6mm

Rated surge voltage :

8

Manufacturer :

Wago

Operating Temperature :

-60°C ~ 105°C

Torque - Screw :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Positions Per Level :

1

Nominal current - rounded value :

24A

Screw Material - Plating :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Enclosure material :

Polyamide

Product Status :

Active

Features :

+ CAGE CLAMP®

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Number of Poles :

1

Industrial packaging :

yes

Wire Gauge :

12-28 AWG

Nominal voltage :

1000V
