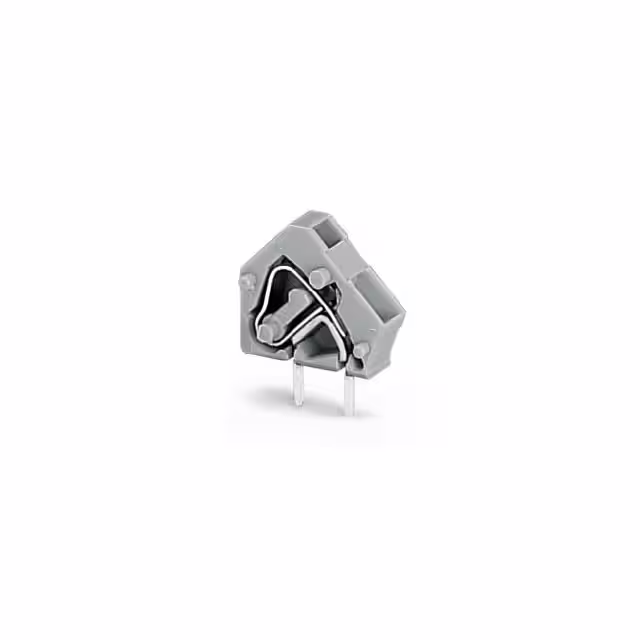

236-740

Manufacturer :

WAGO

Product Category :

Wire to Board

Housing Color :

Red

Contact Material - Plating :

Electrolytic Copper - Tin Plated

ECCN (US) :

EAR99

Manufacturer :

Wago

HTS :

8536.90.40.00

Features :

-

EU RoHS :

Compliant

Torque - Screw :

-

Current :

15 A

Product Status :

Active

Number of Levels :

1

Pin Length :

4 MilliMeters

Mounting Type :

PCB Mount

Pitch :

-

PPAP :

No

Mating Orientation :

45° (135°) Angle with Board

Operating Temperature :

-60°C ~ 105°C

Positions Per Level :

1

Connection Type :

Spring Clamp

Composition :

Polyamide

Screw Thread :

-

Number of Poles :

1

Screw Material - Plating :

-

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Wire Gauge :

12-28 AWG

Voltage :

300 V

Clamp Material - Plating :

Steel - Nickel Plated

Temperature Range :

-76 to 221 Degrees F

Approvals :

CSA;UL

RoHS :

yes

Color :

Red

Automotive :

No

Housing Material :

Polyamide (PA66), Nylon 6/6
