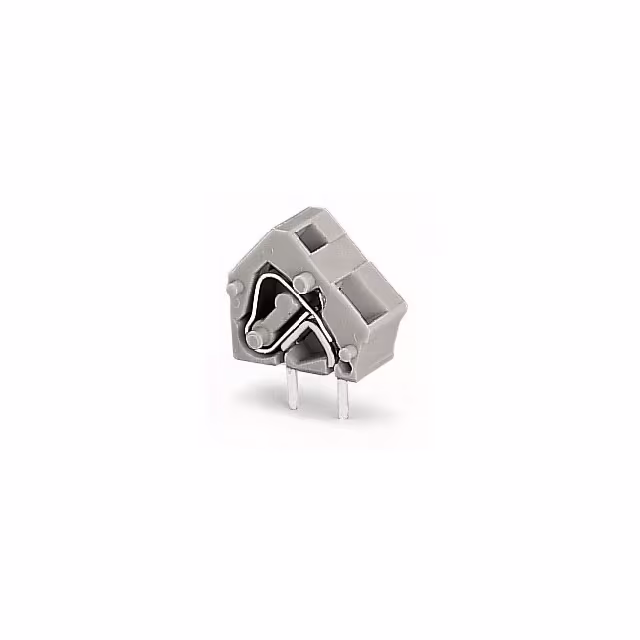

236-755

Manufacturer :

WAGO

Product Category :

Wire to Board

HTS :

8536.90.40.00

RoHS :

yes

Actuation direction :

At an angle (to the PCB)

Mounting Type :

PCB Mount

Number of Levels :

1

ECCN (US) :

EAR99

Wire Termination :

Screwless - Spring Cage, Tension Clamp

No. of rows :

1

Type :

236-755

Mating Orientation :

45° (135°) Angle with Board

Manufacturer :

Wago

Height :

14.00mm

Stripping length (max.) :

6mm

Pins per row :

1

Positions Per Level :

1

EU RoHS :

Compliant

Screw Material - Plating :

-

Cross section (inflexible) (max.) :

2.50mm²

Cross section (inflexible) (min.) :

0.08mm²

Nominal current - rounded value :

24A

Connection Type :

Spring Clamp

Temperature Range :

-76 to 221 Degrees F

Automotive :

No

Pitch :

-

Nominal current :

24A

Approvals :

CSA;UL

Wire Gauge :

12-28 AWG

Clamp Material - Plating :

Steel - Nickel Plated

Pin Length :

4 MilliMeters

Manufacturer part # :

236-755

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Connection :

Spring-loaded terminal,Print

Cross section (flexible) (max.) :

2.50mm²

Number of Poles :

1

Screw Thread :

-

PPAP :

No

Enclosure material :

Polyamide

Industrial packaging :

yes

Color :

Green

Length :

9.70mm

Current :

15 A

Torque - Screw :

-

Product Status :

Active

Content :

400pc(s)

Cross section (flexible) (min.) :

0.08mm²

AWG (min.) :

28

Nominal voltage :

630V

Width :

17.00mm

CS :

7.50mm,7.62mm

Min. stripping length :

8mm

Voltage :

300 V

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire protection :

yes

AWG max. :

12

Features :

+ CAGE CLAMP®

Series :

236

Composition :

Polyamide

Operating Temperature :

-60°C ~ 105°C
