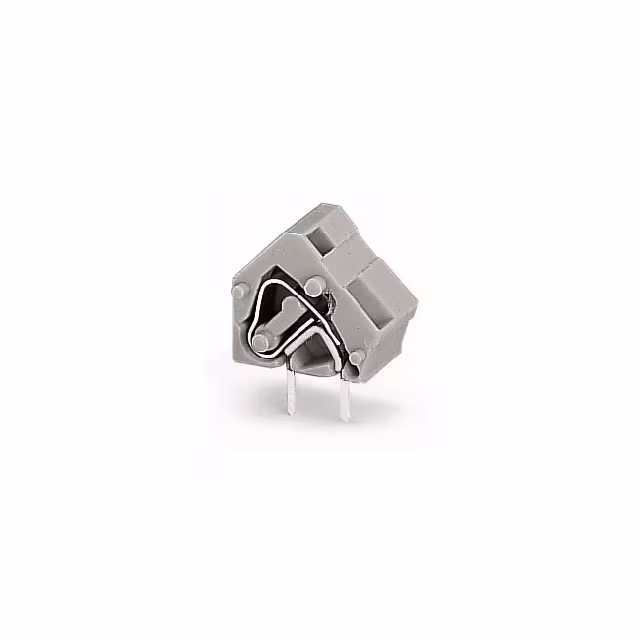

236-762

Manufacturer :

WAGO

Product Category :

Wire to Board

ECCN (US) :

EAR99

Composition :

Polyamide

Screw Material - Plating :

-

RoHS :

yes

Operating Temperature :

-60°C ~ 105°C

Automotive :

No

Screw Thread :

-

Voltage :

300 V

Series :

236

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Min. stripping length :

8mm

Cross section (flexible) (max.) :

2.50mm²

Connectable conductor cross section multi-wired :

0.08 - 2.5

Features :

+ CAGE CLAMP®

Connectable conductor cross section solid-core :

0.08 - 2.5

Manufacturer :

Wago

Nominal voltage :

1000V

AWG (min.) :

28

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Cross section (inflexible) (max.) :

2.50mm²

Type of fastening :

Solder

Cross section (inflexible) (min.) :

0.08mm²

Wire Gauge :

12-28 AWG

Content :

300pc(s)

Industrial packaging :

yes

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Current :

15 A

PPAP :

No

Connection Type :

Spring Clamp

EU RoHS :

Compliant

Type :

236-762

Rated current In :

24

CS :

10mm,10.16mm

Product Status :

Active

Number of Levels :

1

Enclosure material :

Polyamide

No. of rows :

1

Color :

Dark Gray

Nominal current - rounded value :

24A

Stripping length (max.) :

6mm

Clamp Material - Plating :

Steel - Nickel Plated

Nominal current :

24A

Number of Poles :

1

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Mounting Type :

PCB Mount

Height :

14.00mm

Rated surge voltage :

8

Over voltage category :

III

Torque - Screw :

-

Package :

Box

Positions Per Level :

1

Pins per row :

1

Wire protection :

yes

Manufacturer part # :

236-762

Pin Length :

4 MilliMeters

Housing Material :

Polyamide (PA66), Nylon 6/6

Pollution degree :

2

Actuation direction :

At an angle (to the PCB)

AWG max. :

12

Pitch :

-

Connection :

Spring-loaded terminal,Print

Inflammability class of insulation material according to with UL94 :

V0

Length :

12.20mm

Temperature Range :

-76 to 221 Degrees F

Mating Orientation :

45° (135°) Angle with Board

Width :

17.00mm

Packaging type :

Other

Cross section (flexible) (min.) :

0.08mm²

Approvals :

CSA;UL
