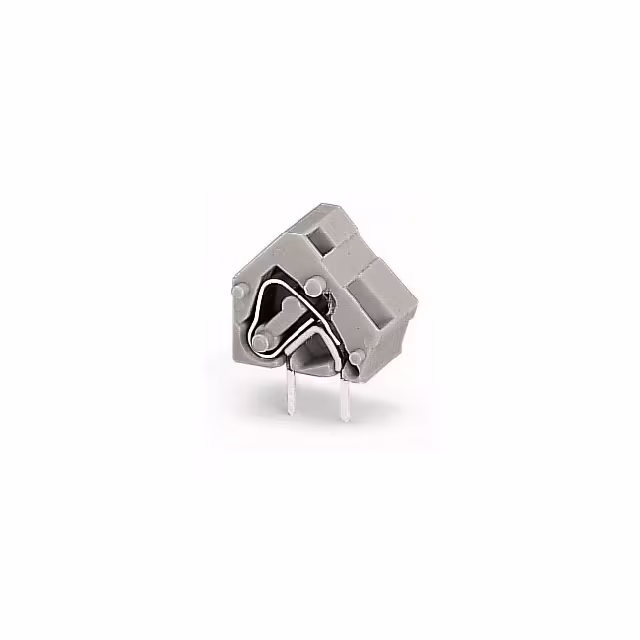

236-764

Manufacturer :

WAGO

Product Category :

Wire to Board

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Cross section (flexible) (min.) :

0.08mm²

AWG max. :

12

Manufacturer part # :

236-764

Nominal voltage :

1000V

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Number of Contacts :

1

ECCN (US) :

EAR99

Screw Material - Plating :

-

Voltage :

300 V

Inflammability class of insulation material according to with UL94 :

V0

Packaging type :

Other

Connectable conductor cross section solid-core :

0.08 - 2.5

Connection :

Spring-loaded terminal,Print

Over voltage category :

III

Automotive :

No

HTS :

8536.90.40.00

No. of rows :

1

Enclosure material :

Polyamide

Manufacturer :

Wago

Stripping length (max.) :

6mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Features :

+ CAGE CLAMP®

Product Status :

Active

AWG (min.) :

28

Nominal current :

24A

Mating Orientation :

45° (135°) Angle with Board

Cross section (inflexible) (max.) :

2.50mm²

Height :

14.00mm

Torque - Screw :

-

Number of Poles :

1

Operating Temperature :

-60°C ~ 105°C

Cross section (flexible) (max.) :

2.50mm²

Wire Gauge :

12-28 AWG

Industrial packaging :

yes

Connection Type :

Spring Clamp

Clamp Material - Plating :

Steel - Nickel Plated

RoHS :

yes

Number of Levels :

1

Composition :

Polyamide

Actuation direction :

At an angle (to the PCB)

Connectable conductor cross section multi-wired :

0.08 - 2.5

Color :

Blue

Rated surge voltage :

8

EU RoHS :

Compliant

Positions Per Level :

1

Current :

15 A

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Length :

12.20mm

Number of Rows :

1

Mounting Type :

PCB Mount

Pollution degree :

2

Type of fastening :

Solder

PPAP :

No

Wire protection :

yes

Gender :

FEMALE

CS :

10mm,10.16mm

Series :

236

Pitch :

10/10.16mm

Content :

300pc(s)

Temperature Range :

-76 to 221 Degrees F

Package :

Box

Pin Length :

4 MilliMeters

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Rated current In :

24

Screw Thread :

-

Min. stripping length :

8mm

Width :

17.00mm

Type :

236-764

Nominal current - rounded value :

24A

Approvals :

CSA;UL

Cross section (inflexible) (min.) :

0.08mm²
