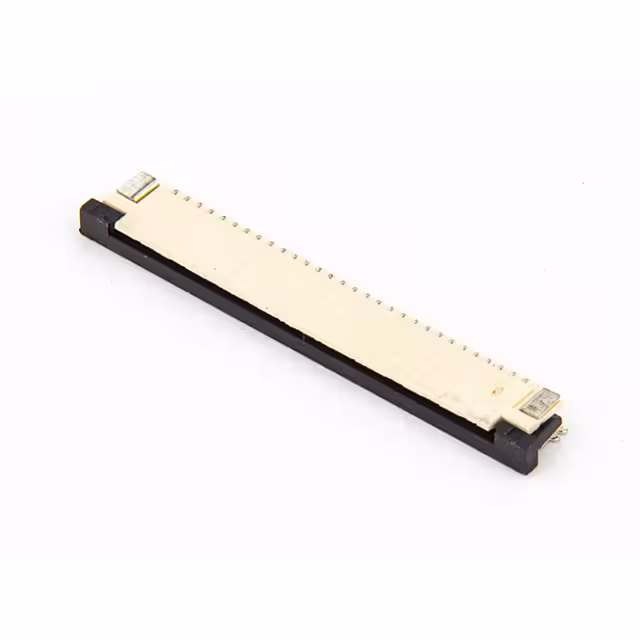

2434-C18TD2T
Or copy the link below:
- Mfr.Part #
- 2434-C18TD2T
- Manufacturer
- Oupiin
- Package / Case
- Datasheet
- Download
- Description
- FFC/FPC CONNECTOR, 18 PIN, TIN P
- Stock
- 27,805
- In Stock ：
- 27,805
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Oupiin
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Series :
- 2434-C
- Flat Flex Type :
- FFC, FPC
- Termination :
- Solder
- Voltage Rating :
- -
- Actuator Color :
- -
- Contact Material :
- Phosphor Bronze
- Current Rating (Amps) :
- 0.5A
- Material Flammability Rating :
- UL94 V-0
- Locking Feature :
- Slide Lock
- Cable End Type :
- Straight
- Product Status :
- Active
- Contact Finish :
- Tin
- Pitch :
- 0.039" (1.00mm)
- Mounting Type :
- Surface Mount, Right Angle
- Package :
- Tape and Reel (TR)
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Connector/Contact Type :
- Contacts, Bottom
- Contact Finish Thickness :
- 100.0µin (2.54µm)
- Height Above Board :
- 0.098" (2.50mm)
- Operating Temperature :
- -25°C ~ 85°C
- Number of Positions :
- 18
- Base Product Number :
- 2434-C18
- Actuator Material :
- Liquid Crystal Polymer (LCP)
- Mating Cycles :
- -
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Housing Color :
- -
- FFC, FCB Thickness :
- 0.30mm
- Datasheets
- 2434-C18TD2T
2434-C Series FFC, FPC Contacts, Bottom 0.039" (1.00mm) Solder 18 Positions Surface Mount, Right Angle Tin -25°C ~ 85°C 0.5A
2434-C18TD2T Overview
This device is mounted in the Surface Mount, Right Angle position.There is a product in the 2434-C Series.As a result, the device runs at -25°C ~ 85°C Operating Temperature.
2434-C18TD2T Features
2434-C series
2434-C18TD2T Applications
There are a lot of Oupiin
2434-C18TD2T FFC, FPC (Flat Flexible) Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
