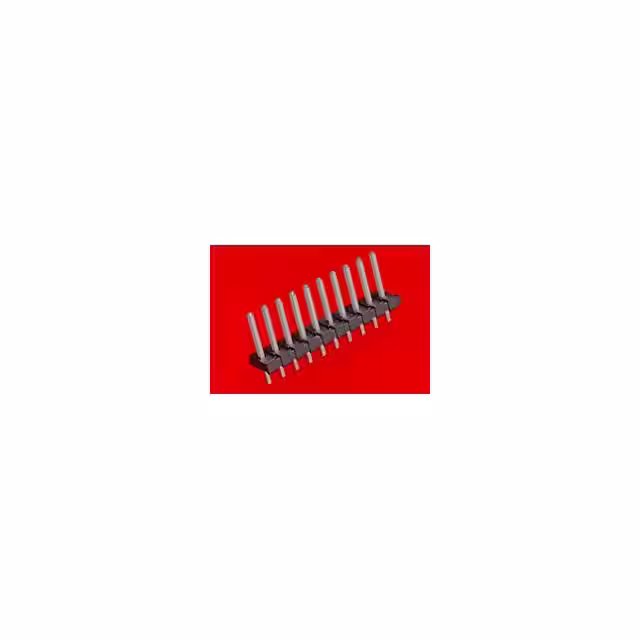

26-50-3066

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Option :

GENERAL PURPOSE

DIN Conformance :

No

Accessory Type :

-

Reach Compliance Code :

Compliant

Terminal Pitch :

3.96 mm

IEC Conformance :

No

Mounting Style :

Through Hole

Gender :

Header

Product Length (mm) :

23.72(mm)

Manufacturer :

Molex

Contact Type :

-

Product Length :

23.72 mm

Product Height (mm) :

14.68(mm)

Mounting Type :

BOARD

Number of Rows :

1 Row

Total Number of Contacts :

4

Tradename :

KK

Brand :

Molex

Flammability Rating :

UL 94 V-0

Package :

Bag

Number of Positions :

6 Position

Pitch (mm) :

3.96(mm)

Product Category :

Headers and Wire Housings

Contact Plating :

Tin

Connector Type :

BOARD CONNECTOR

Factory Lead Time :

11 Weeks

Current Rating (Max) :

4.5/Contact(A)

Contact Material :

Brass

Additional Feature :

KK

Housing Color :

Black

Operating Temp Range :

-40C to 80C

Contact Gender :

Pin (Male)

Type :

Wire to Board

Mating Information :

No

Contact Resistance Max :

10(mohm)

Packaging :

Bulk

Filter Feature :

No

Base/Housing Material :

Polyester

UL Flammability Code :

94V-0

Housing Material :

Polyester

Number of Contacts :

6(POS)

Termination Type :

Solder

Mating Post Length :

11.43 mm

MIL Conformance :

No

RoHS :

Details

Product Depth (mm) :

9.02(mm)

Termination Method :

Solder

Mixed Contacts :

No

Termination Style :

Solder Pin

Product :

Headers

Pbfree Code :

yes

Product Type :

Headers and Wire Housings

Pitch :

3.9600 mm

Mounting :

Through Hole

Series :

41671

Subcategory :

Headers and Wire Housings

Mounting Angle :

Straight

Product Status :

Active

Operating Temperature :

0 to 75 °C

Row Spacing :

-

Number of Contact Rows :

1

Voltage Rating Max :

600VDC/600VAC

Termination Post Length :

4.37 mm

Body Orientation :

Straight
