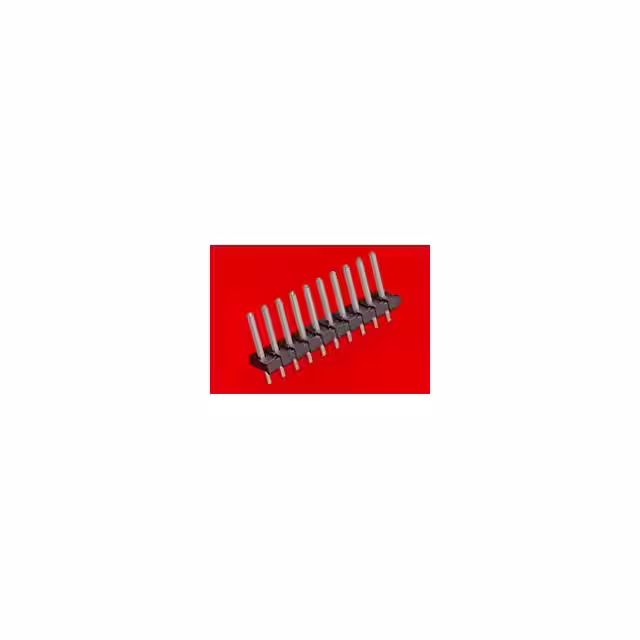

26-50-3108

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product Length (mm) :

39.57(mm)

Number of Contacts :

10(POS)

IEC Conformance :

No

Mounting Style :

Through Hole

Termination Style :

Solder Pin

Voltage Rating Max :

600VDC/600VAC

Factory Lead Time :

11 Weeks

Housing Material :

Polyester

Filter Feature :

No

Reach Compliance Code :

Compliant

Additional Feature :

KK

Gender :

Header

Type :

Wire to Board

Pitch :

3.9600 mm

Mounting :

Through Hole

RoHS :

Compliant

Product Depth (mm) :

9.02(mm)

Contact Plating :

Tin

Package :

Bag

Connector Type :

BOARD CONNECTOR

Number of Rows :

1

Lifecycle Status :

Production (Last Updated: 2 years ago)

DIN Conformance :

No

Mating Post Length :

11.43 mm

Product Category :

Headers and Wire Housings

Termination :

Through Hole

Option :

GENERAL PURPOSE

Tradename :

KK

Accessory Type :

-

Mounting Type :

BOARD

Termination Post Length :

4.37 mm

Packaging :

Bulk

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Product Height (mm) :

14.68(mm)

Contact Resistance Max :

10(mohm)

Product :

Headers

Country of Origin :

PR

Operating Temperature :

0 to 75 °C

Manufacturer :

Molex

Operating Temp Range :

-40C to 80C

Product Status :

Active

UL Flammability Code :

94V-0

Mounting Angle :

Straight

Flammability Rating :

UL 94 V-0

Subcategory :

Headers and Wire Housings

Series :

*

Housing Color :

Black

Contact Material :

Brass

Product Type :

Headers and Wire Housings

Lead Length :

4.37 mm

Row Spacing :

-

Mixed Contacts :

No

Pitch (mm) :

3.96(mm)

Termination Method :

Solder

Contact Gender :

Male

Number of Positions :

10

MIL Conformance :

No

Base/Housing Material :

Polyester

Terminal Pitch :

3.96 mm

Current Rating (Max) :

4.5/Contact(A)

Brand :

Molex

Body Orientation :

Straight

Number of Contact Rows :

1

Termination Type :

Solder

Product Length :

39.57 mm

Pbfree Code :

yes

Contact Type :

-

Mating Information :

No

Total Number of Contacts :

8
