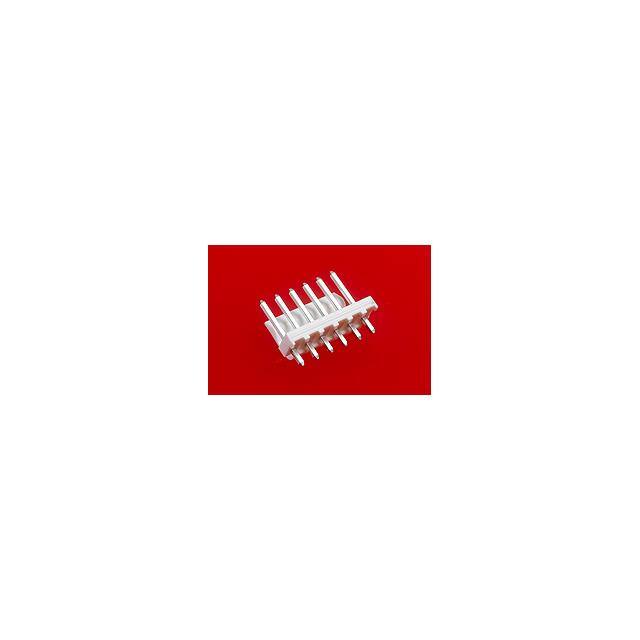

26-60-4170

Share

Or copy the link below:

Mfr.Part #
26-60-4170
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
KK 156 HDR ASSY FRLK 17 CKT TIN
Stock
1,241
In Stock :
1,241

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Headers, Male Pins
Contact Gender :
Pin (Male)
Rated Current (Signal) :
7 A
Number of Contact Rows :
1
Product Type :
Headers and Wire Housings
Contact Resistance Max :
10(mohm)
Current Rating (Max) :
7/Contact(A)
Body Breadth :
0.394 inch
Termination Type :
Solder
Body/Shell Style :
Receptacle
Additional Feature :
Friction Lock
Terminal Pitch :
3.96 mm
Country of Origin :
US
Number Of PCB Rows :
1
Reference Standard :
UL, CSA
MIL Conformance :
No
Voltage Rating Max :
250V
Number of Positions :
17 Position
Number of Rows :
1 Row
Mounting Angle :
Straight
Accessory Type :
-
Flammability Rating :
UL 94 V-0
Gender :
Header
Lead Pitch :
3.96 mm
Dielectric Withstanding Voltage :
1500VAC V
Mating Contact Pitch :
0.156 inch
PCB Contact Pattern :
RECTANGULAR
Connector Type :
BOARD CONNECTOR
Body Depth :
0.446 inch
Number of Circuits :
17
Manufacturer :
Molex
Product Length :
67.21 mm
Glow Wire Compliant :
Non-Compliant
Mounting :
Through Hole
Contact Finish Termination :
Tin (Sn)
Voltage Rating :
250 V
Insulation Resistance :
50 GΩ
Series :
41791
Termination Post Length :
3.56 mm
Product Status :
Active
Termination :
Through Hole
ECCN Code :
EAR99
Body Orientation :
Straight
Product Category :
Headers and Wire Housings
Current Rating :
7 A
RoHS :
Details
Pitch (mm) :
3.96(mm)
Housing Material :
Polyester
Plating Thickness :
200u inch
Termination Method :
Solder
DIN Conformance :
No
Contact Resistance :
6 mΩ
Total Number of Contacts :
17
Packaging :
Bag
Filter Feature :
No
IEC Conformance :
No
Application :
Power
Manufacturer Lifecycle Status :
ACTIVE (Last Updated: 2 years ago)
Mating Post Length :
11.43 mm
Product Length (mm) :
67.21(mm)
HTS Code :
8536.69.40.40
Option :
GENERAL PURPOSE
Reach Compliance Code :
Compliant
Base/Housing Material :
Polyester
JESD-609 Code :
e3
Lifecycle Status :
Production (Last Updated: 2 years ago)
Product Height (mm) :
14.73(mm)
Type :
Wire to Board
Tradename :
KK
Product :
Headers
Contact Pattern :
RECTANGULAR
Mounting Style :
Through Hole
Brand :
Molex
Termination Style :
Solder Pin
Number of Contacts :
17(POS)
Operating Temp Range :
-40C to 80C
Contact Style :
SQ PIN-SKT
Housing Color :
Natural
Contact Plating :
Tin
Reliability :
COMMERCIAL
Subcategory :
Headers and Wire Housings
Polarization Key :
HOUSING SIDE
Pitch :
3.9600 mm
Color :
Natural
Voltage Rating (DC) :
250 V
Pbfree Code :
yes
Product Depth (mm) :
10.01(mm)
Flammability :
94V-0
Contact Material :
Brass
Operating Temperature :
0 to 75 °C
Mounting Option 2 :
Plastic
Minimum Operating Temperature :
- 40 C
Maximum Operating Temperature :
+ 80 C
Mounting Option 1 :
Latch
Mounting Type :
BOARD
Terminal Length :
0.14 inch
Package :
Box
Orientation :
Vertical
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Contact Type :
-
Plating :
Tin
Mixed Contacts :
No
UL Flammability Code :
94V-0
Datasheets
26-60-4170
