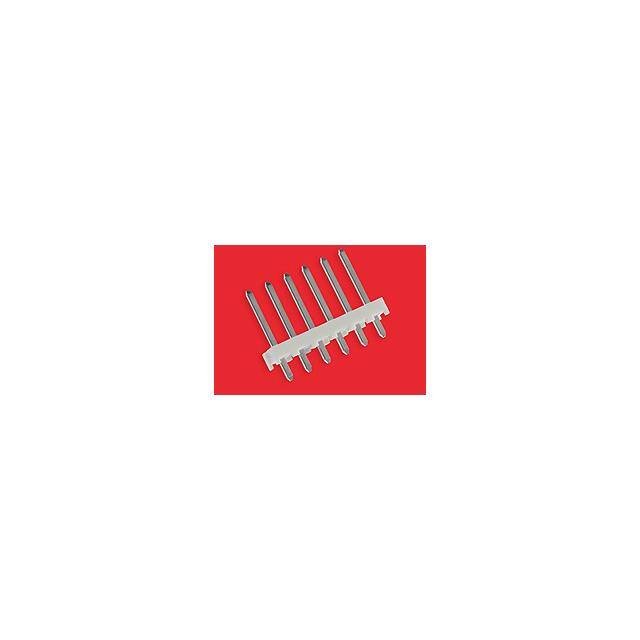

26-61-2120

Manufacturer :

Molex

Product Category :

Headers, Male Pins

ECCN Code :

EAR99

Termination Style :

Solder Pin

JESD-609 Code :

e4

Contact Plating :

Gold

Housing Color :

Natural

Body/Shell Style :

Receptacle

Contact Gender :

Pin (Male)

Product :

Headers

Product Type :

Headers and Wire Housings

Application :

Board-to-Board

Mount :

Through Hole

Product Status :

Active

Terminal Length :

0.14 inch

MIL Conformance :

No

Contact Mating Length :

11.43 mm

Contact Finish Termination :

Gold (Au)

Max Operating Temperature :

75 °C

Mixed Contacts :

No

Housing Material :

Polyester

Manufacturer :

Molex

Rated Current (Signal) :

7 A

Number of Circuits :

11

Brand :

Molex

Number of Rows :

1

Mounting Style :

Through Hole

Option :

GENERAL PURPOSE

Tradename :

KK

Orientation :

Vertical

Flammability :

94V-0

RoHS :

Compliant

Body Depth :

0.13 inch

Mating Contact Pitch :

0.156 inch

Plating Thickness :

20u inch

Contact Style :

SQ PIN-SKT

Pbfree Code :

yes

Reliability :

COMMERCIAL

Contact Type :

-

Series :

41771

Depth :

6.35 mm

Gender :

Male

Subcategory :

Headers and Wire Housings

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Length :

47.4 mm

Packaging :

Bulk

Current Rating :

7 A

UL Flammability Code :

94V-0

Row Spacing :

-

PCB Contact Pattern :

RECTANGULAR

Termination Type :

Solder

HTS Code :

8536.69.40.40

Reach Compliance Code :

Compliant

Number Of PCB Rows :

1

Country of Origin :

PR

Min Operating Temperature :

0 °C

Termination :

Solder

Total Number of Contacts :

12

Insulation Resistance :

50000000000 Ω

Mounting Angle :

Straight

IEC Conformance :

No

Product Category :

Headers and Wire Housings

Package :

Box

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Contacts :

12

Accessory Type :

-

Termination Post Length :

3.56 mm

Flammability Rating :

UL 94 V-0

Terminal Pitch :

3.96 mm

Number of Positions :

12

Mounting Type :

BOARD

Mating Post Length :

11.43 mm

Pitch :

3.96 mm

Contact Resistance :

10 MΩ

Voltage Rating :

250 V

Filter Feature :

No

Reference Standard :

UL, CSA

Insulator Color :

White

Body Breadth :

0.25 inch

Contact Pattern :

RECTANGULAR

Additional Feature :

END-TO-END STACKABLE

Color :

White

Dielectric Withstanding Voltage :

1500VAC V

Type :

Pin strip

Connector Type :

Male Pin

Contact Material :

Brass

DIN Conformance :

No

Lifecycle Status :

Production (Last Updated: 2 years ago)
