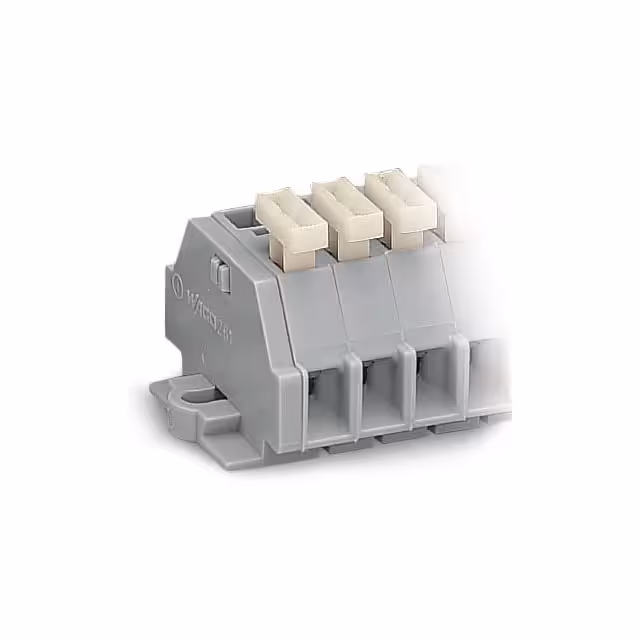

261-102/331-000

Manufacturer :

WAGO

Product Category :

Specialized

Contamination level :

3

Transparent :

No

Automotive :

No

Features :

+ sleeve,One-sided + actuator

Number of Positions :

4

Product Status :

Active

Wire Gauge or Range - mm² :

0.08-2.5mm²

Material Flammability Rating :

UL94 V-0

Color :

Gray

Depth :

23.3

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Stripping Length :

8mm ~ 9mm

Cross section (inflexible) (min.) :

0.08mm²

Connection Type :

Spring Clamp

Stripping length (max.) :

9mm

Nominal current - rounded value :

24A

ECCN (US) :

EAR99

Termination Style :

Push In, Spring

RoHS :

yes

Inflammability class of insulation material according to with UL94 :

V0

Pins per row :

2

Length :

28

EU RoHS :

Compliant

Wire Gauge or Range - AWG :

14-28 AWG

Cross section (inflexible) (max.) :

2.50mm²

Content :

100pc(s)

Manufacturer part # :

261-102/331-000

PPAP :

No

Mounting Type :

Surface Mount

AWG max. :

14

Nominal voltage :

500V

Connection :

Pull spring

Series :

-

Package :

Box

Industrial packaging :

yes

Type :

WAGO GmbH and Co. KG

Connectable conductor cross section solid-core :

0.08 - 2.5

Height :

23.20mm

Manufacturer :

Wago

AWG (min.) :

28

Number of Poles :

2

No. of rows :

2

Rated current In :

24

Voltage - IEC :

500 V

Dim :

(W x H) 26.50 mm x 23.20 mm

Configuration :

L

Operating Temperature :

-

Number of Levels :

1

Terminal - Width :

26.1mm

Clamp width :

6mm

HTS :

8536.90.40.00

Cross section (flexible) (min.) :

0.08mm²

Housing Color :

Gray

Width :

26.50mm

Min. stripping length :

8mm

Connectable conductor cross section multi-wired :

0.08 - 2.5

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Cross section (flexible) (max.) :

2.50mm²

Height (Max) :

0.917 (23.30mm)

Nominal current :

24A

Current - IEC :

24 A
