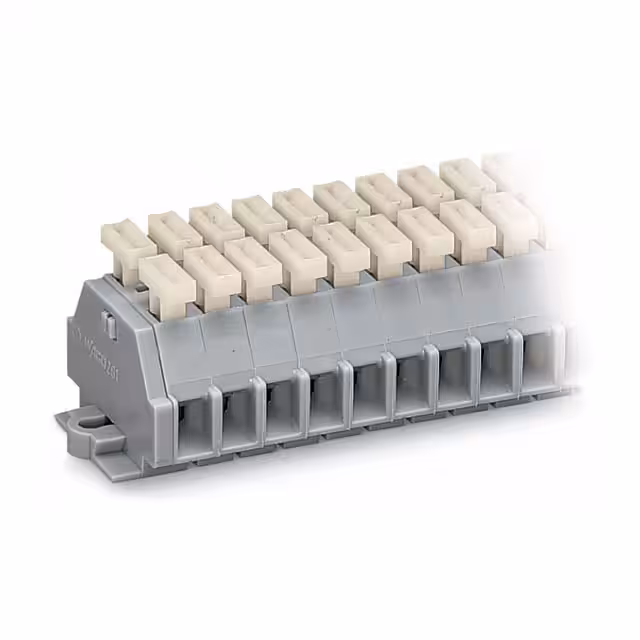

261-102/341-000

Manufacturer :

WAGO

Product Category :

Specialized

Manufacturer part # :

261-102/341-000

Manufacturer :

Wago

EU RoHS :

Compliant

Height :

23.20mm

Wire Gauge or Range - AWG :

14-28 AWG

Contamination level :

3

Stripping length (max.) :

9mm

Operating Temperature :

-

Features :

+ sleeve,Two-sided + actuator

Cross section (inflexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.08mm²

Current - IEC :

24 A

HTS :

8536.90.40.00

Length :

1.106 (28.09mm)

Number of Poles :

2

Min. stripping length :

8mm

AWG max. :

14

Dim :

(W x H) 26.50 mm x 23.20 mm

RoHS :

yes

Content :

100pc(s)

Housing Color :

Gray

Industrial packaging :

yes

Height (Max) :

0.917 (23.30mm)

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Package :

Box

Width :

26.50mm

Number of Levels :

1

Pins per row :

2

Nominal current :

24A

Cross section (flexible) (max.) :

2.50mm²

Color :

Gray

PPAP :

No

Type :

261-102/341-000

ECCN (US) :

EAR99

Stripping Length :

8mm ~ 9mm

Nominal current - rounded value :

24A

Number of Positions :

4

Automotive :

No

Voltage - IEC :

500 V

Termination Style :

Push In, Spring

Wire Gauge or Range - mm² :

0.08-2.5mm²

No. of rows :

2

Product Status :

Active

Terminal - Width :

26.1mm

Configuration :

L

Connection Type :

Spring Clamp

Cross section (inflexible) (min.) :

0.08mm²

Nominal voltage :

500V

Mounting Type :

Surface Mount

Connection :

Pull spring

Material Flammability Rating :

UL94 V-0

AWG (min.) :

28

Clamp width :

6mm

Series :

-
