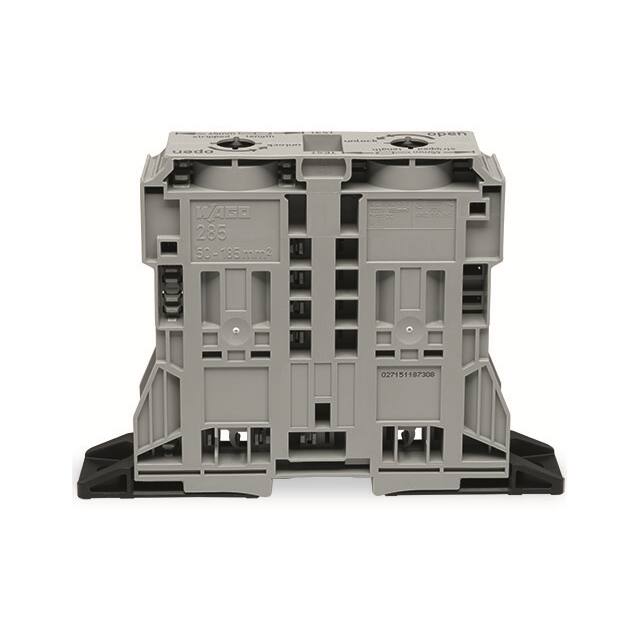

285-1161

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Positions :

2

Series :

-

Type :

Feed-Through Terminal Block

Termination Style :

Push In, Spring

Wire Gauge or Range - AWG :

350MCM (kcmil)-1/0 AWG

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Levels :

1

Current - UL :

310 A

Number of Rows :

2

Color :

Gray

Features :

-

Terminal - Width :

32.0mm

Mounting Type :

Flange

HTS :

8536.69.40.51

Termination Method :

Spring Clamp

ECCN (US) :

EAR99

Voltage - IEC :

1500V

PPAP :

No

Manufacturer :

Wago

Maximum Voltage Rating :

1000V

Mounting :

Panel Mount

Number of Contacts :

2

RoHS :

yes

Housing Color :

Gray

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

50-185mm²

Stripping Length :

45mm ~ 47mm

Fuse Type :

-

Maximum Operating Temperature (°C) :

105

Disconnect Type :

-

Current - IEC :

353 A

Number of Circuits :

1

Minimum Operating Temperature (°C) :

-60

Voltage - UL :

600V

Maximum Current Rating (A) :

353

EU RoHS :

Compliant

Automotive :

No

Package :

Box

Product Status :

Active
