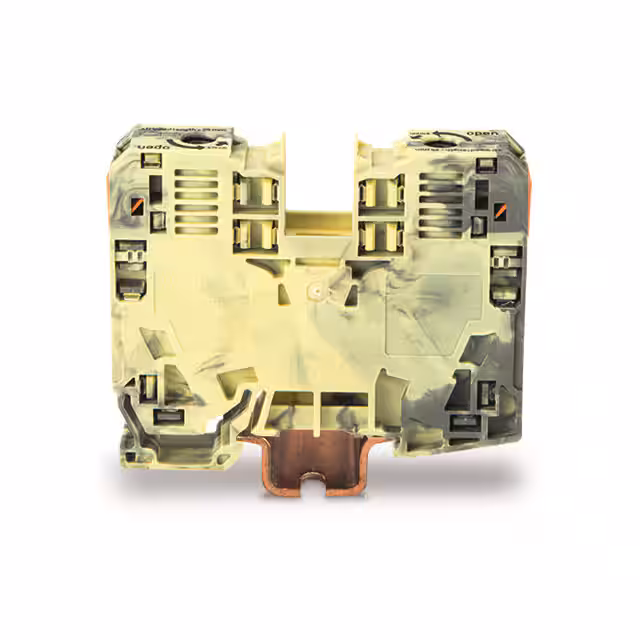

285-131

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Termination Style :

Push In, Spring

Fuse Type :

-

Wire Gauge or Range - mm² :

0.08-2.5mm²

Color :

Gray, Yellow

Package :

Box

Inflammability class of insulation material according to with UL94 :

V0

Height :

86

Depth :

63

Connectable conductor cross section multi-wired :

6 - 35

Type :

Feed-Through Terminal Block

Mounting Type :

DIN Rail

Automotive :

No

Voltage - UL :

600V

Gender :

Female/Male

Series :

WINSTA MINI

Approvals :

CSA, UR

Current - UL :

115 A

PPAP :

No

Voltage - IEC :

1000V

Number of Circuits :

1

Connectable conductor cross section fine-strand with cable end sleeve :

6 - 35

Features :

-

Terminal - Width :

16.0mm

Mounting :

DIN Rail

ECCN (US) :

EAR99

Shell Material :

PA

Number of Levels :

1

Stripping Length :

25mm

EU RoHS :

Compliant

Length :

86

Maximum Current Rating (A) :

125

Note :

n/a

Disconnect Type :

-

Rated current In :

125

Shell Size :

-

RoHS :

yes

Material Flammability Rating :

UL94 V-0

Minimum Operating Temperature (°C) :

-60

Number of Positions/Contacts :

5

Manufacturer :

Wago

Wire Gauge or Range - AWG :

2-8 AWG

Width :

16

Number of Rows :

2

Product Status :

Active

Maximum Voltage Rating :

1000V

Number of Contacts :

2

Connectable conductor cross section fine-strand without cable end sleeve :

6 - 35

Current - IEC :

125 A

Material - Insulation :

Polyamide (PA66), Nylon 6/6

HTS :

8536.90.40.00

Maximum Operating Temperature (°C) :

105

Termination Method :

Spring Clamp

Connectable conductor cross section solid-core :

6 - 35

Number of Positions :

2
