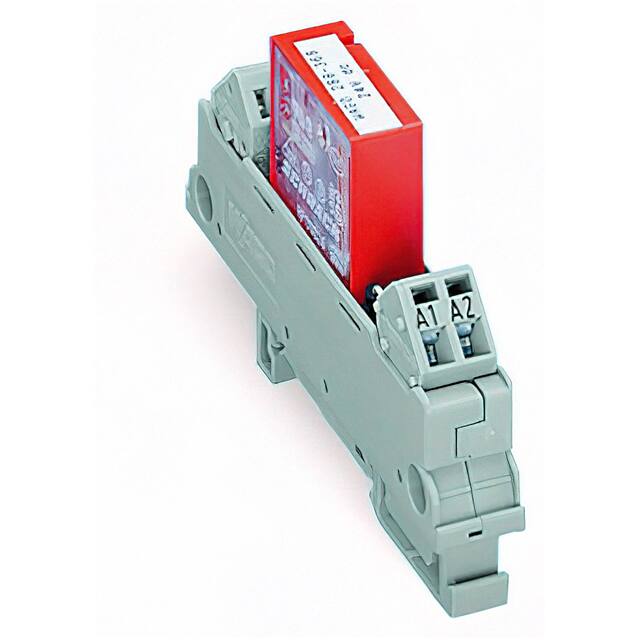

288-368

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Contact Rating (Current) :

5 A

Voltage type for actuating :

DC

Weight :

31.1g

Contacts :

(1) NC

Rad Hardened :

No

Nominal current :

5

Contact Material :

Silver Nickel (AgNi)

Number of contacts as normally open contact :

0

Voltage Rating (VAC) :

250(V)

Coil Current :

20 mA

Voltage Rating (VDC) :

250(V)

Depth :

85

Coil Voltage DC :

24

Product Length (mm) :

13(mm)

Switching Voltage :

250VAC - Max

Coil Voltage :

24VDC

Termination Style :

Spring Terminal

Height :

47mm

Operating Temp Range :

-25C to 40C

Contact Form :

SPST-NC (1 Form B)

Switching voltage (max.) :

250V DC,250V AC

Number of contacts as change-over contact :

0

LED Indicator :

No

Degree of protection (IP) :

IP20

Type of electric connection :

Spring clamp connection

Coil Suppression Diode :

No

Product Depth (mm) :

47(mm)

Release Time :

6 ms

Packaging :

Box

Content :

1pc(s)

Contact Current Rating :

5(A)

Current :

5 A

Rated control supply voltage at DC :

24 - 24

Channels :

1

Dim :

(L x W x H) 85 x 13 x 47 mm

Width :

13mm

Mounting Type :

DIN Rail

Coil Resistance :

1500(ohm)

Type :

288-368

Series :

288

Number of contacts as normally closed contact :

1

Product Status :

Active

Length :

85mm

Connection :

Pull spring

Operating Temperature :

-25°C ~ 40°C

Material of contact surface :

Silver

Seal :

Unsealed

Manufacturer :

Wago

Mounting Style :

Din-Rail

Package :

Box

Operate Time :

4 ms

Features :

equipped

Switching current (max.) :

5A

Relay Type :

GENERAL PURPOSE

With detachable clamps :

No
