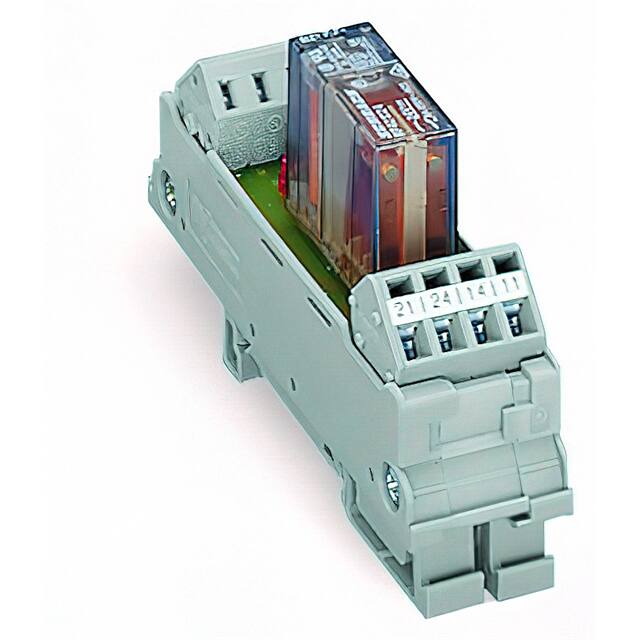

288-512

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Width :

22.5mm

Length :

85mm

Channels :

1

Dim :

(L x W x H) 85 x 22.5 x 48 mm

Rated control supply voltage at AC 50 Hz :

24 - 24

Current :

6 A

Coil Voltage :

24VAC/DC

Features :

equipped

Termination Style :

Spring Terminal

Switching Voltage :

250VAC - Max

Degree of protection (IP) :

IP20

Switching current (max.) :

6A

Product Status :

Active

Relay Type :

GENERAL PURPOSE

Nominal current :

6

Number of contacts as change-over contact :

2

Voltage type for actuating :

AC/DC

Operate Time :

8 ms

Contact Rating (Current) :

6 A

Mounting Type :

DIN Rail

Type of electric connection :

Spring clamp connection

Content :

1pc(s)

Depth :

85

Rated control supply voltage at AC 60 Hz :

24 - 24

Contact Material :

Silver Nickel (AgNi)

Number of contacts as normally closed contact :

0

Connection :

Pull spring

With detachable clamps :

No

Contact Form :

DPDT (2 Form C)

Rated control supply voltage at DC :

24 - 24

Series :

288

Switching voltage (max.) :

250V AC

Package :

Box

Manufacturer :

Wago

Material of contact surface :

Silver

Operating Temperature :

-25°C ~ 50°C

Number of contacts as normally open contact :

0

Type :

288-512

Weight :

44.85g

Coil Current :

21.8 mA

Contacts :

DPDT

Height :

48mm

Release Time :

3 ms
