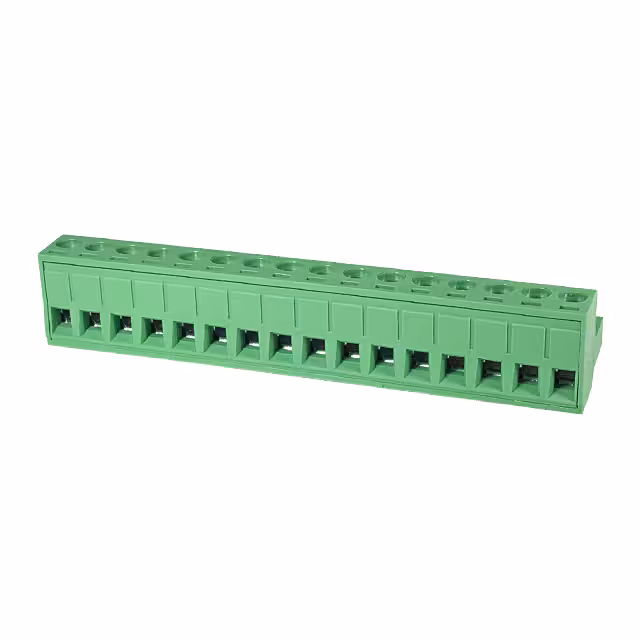

2ESDV-16P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Pbfree Code :

yes

Pitch :

0.200 (5.08mm)

ECCN Code :

EAR99

Mounting Type :

Free Hanging (In-Line)

Color :

Green

Header Orientation :

-

Safety Approval :

CSA; CUL; FIMKO; UL; VDE

Number of Positions :

16

Operating Temperature :

-40°C ~ 120°C

Fastening Method :

Screw

Product Status :

Active

Number of Ways :

16

Voltage - UL :

300 A

Wire Gauge or Range - mm² :

0.2-2.5mm²

Features :

Retention Latches

Wire Cross Section :

2.5 mm2

Reach Compliance Code :

Compliant

Wire Gauge :

12 AWG

Positions Per Level :

16

Current - UL :

15 A

Series :

2ESDV

Wire Gauge or Range - AWG :

12-30 AWG

Number of Rows :

1

Termination Style :

Screw

Current - IEC :

18A

Type :

Plug, Female Sockets

Rated Current :

15 A

Voltage - IEC :

600 A

Package :

Bulk

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Number of Levels :

1

Plug Wire Entry :

180°

Rated Voltage :

300 V

HTS Code :

8536.69.40.40

Number of Decks :

1
