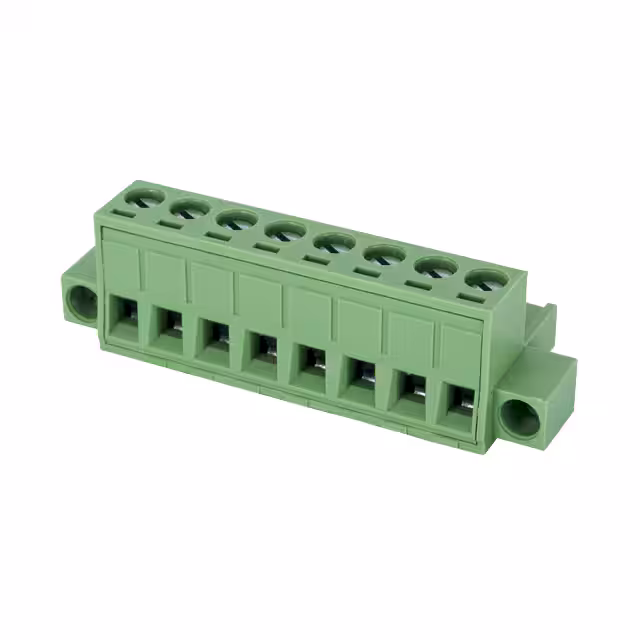

2ESDVM-08P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Packaging :

Box-packed

Rated Voltage :

300 V

Voltage - UL :

300 V

RoHS Status :

RoHS Compliant

Safety Approval :

CSA; CUL; FIMKO; UL; VDE

Voltage - IEC :

600 V

Manufacturer :

Dinkle Enterprises

Mounting Type :

Free Hanging (In-Line)

Contact Mating Finish :

Tin

Positions Per Level :

8

HTS Code :

8536.69.40.40

Number of Ways :

8

Plug Wire Entry :

180°

Pitch :

0.200" 5.08mm

Current - IEC :

18A

Wire Cross Section :

2.5 mm2

Number of Decks :

1

Product Status :

Active

Features :

Mating Flange

Type :

PLUG

Number of Levels :

1

Wire Gauge or Range - AWG :

12-30 AWG

Number of Rows :

1

Current - UL :

15 A

Number of Poles :

8

Rated Current :

15 A

ECCN Code :

EAR99

Wire Gauge or Range - mm² :

0.2-2.5mm²

Termination Style :

Screw - Rising Cage Clamp

Fastening Method :

Screw

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Package / Case :

P=5.08mm

Pbfree Code :

yes

Reach Compliance Code :

Compliant

Number of Positions :

8

Wire Gauge :

12 AWG

Color :

Green

Header Orientation :

-

Operating Temperature :

-40°C ~ 120°C
