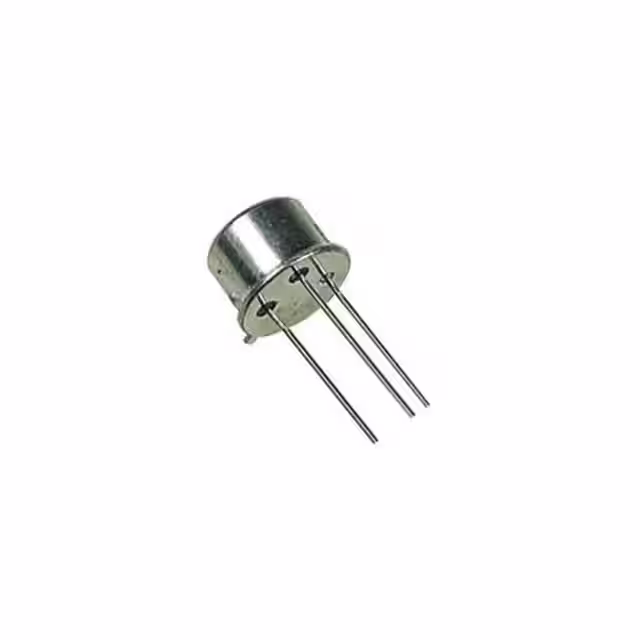

2N2905

Manufacturer :

Microchip Technology

Product Category :

Transistors - Bipolar (BJT) - Single

Qualification Status :

Not Qualified

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Finish :

Tin/Lead (Sn/Pb)

Pin Count :

3

JEDEC-95 Code :

TO-39

Polarity/Channel Type :

PNP

Transition Frequency :

200MHz

RoHS Status :

Non-RoHS Compliant

Mounting Type :

Through Hole

Number of Elements :

1

Power Dissipation-Max (Abs) :

0.6W

Power - Max :

3W

Frequency - Transition :

200MHz

Transistor Element Material :

SILICON

Collector Current-Max (IC) :

0.6A

Operating Temperature (Max) :

200°C

Pbfree Code :

icon-pbfree no

Current - Collector (Ic) (Max) :

600mA

HTS Code :

8541.21.00.75

Number of Terminals :

3

Collector-Emitter Voltage-Max :

40V

DC Current Gain-Min (hFE) :

30

JESD-609 Code :

e0

Vce Saturation (Max) @ Ib, Ic :

1.6V @ 50mA, 500mA

Package / Case :

TO-205AD, TO-39-3 Metal Can

ECCN Code :

EAR99

JESD-30 Code :

O-MBCY-W3

Terminal Form :

Wire

DC Current Gain (hFE) (Min) @ Ic, Vce :

100 @ 150mA, 10V

Reach Compliance Code :

not_compliant

Configuration :

Single

Voltage - Collector Emitter Breakdown (Max) :

40V

Transistor Application :

SWITCHING

Terminal Position :

BOTTOM

Turn Off Time-Max (toff) :

180ns

Surface Mount :

No

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Current - Collector Cutoff (Max) :

20nA (ICBO)

Transistor Type :

PNP

Series :

--

Turn On Time-Max (ton) :

45ns

Operating Temperature :

-65°C ~ 200°C (TJ)

Supplier Device Package :

TO-39

Packaging :

Bulk
