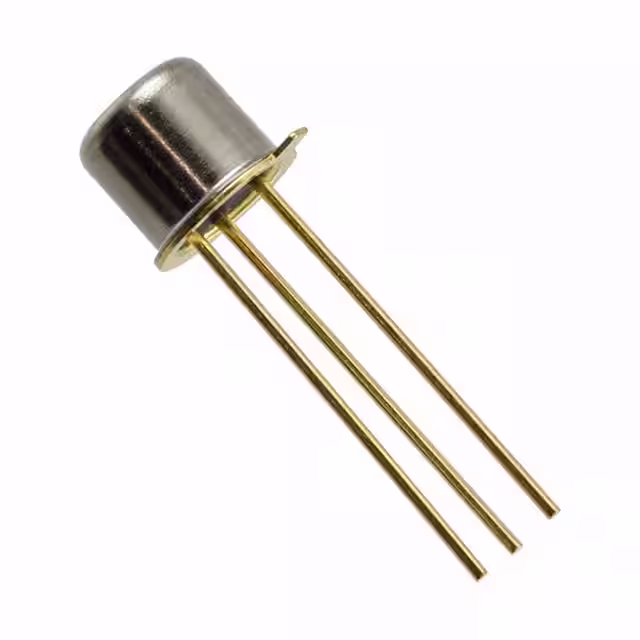

2N3700 PBFREE
Or copy the link below:
- Mfr.Part #
- 2N3700 PBFREE
- Manufacturer
- Central Semiconductor
- Package / Case
- TO-206AA, TO-18-3 Metal Can
- Datasheet
- Download
- Description
- TRANS NPN 80V 1A TO18
- Stock
- 32,927
- In Stock ：
- 32,927
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Central Semiconductor
- Product Category :
- Transistors - Bipolar (BJT) - Single
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 100 @ 150mA 10V
- JESD-609 Code :
- e3
- Power - Max :
- 1.8W
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Current - Collector Cutoff (Max) :
- 10nA ICBO
- Mounting Type :
- Through Hole
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Current - Collector (Ic) (Max) :
- 1A
- Transistor Type :
- NPN
- Terminal Finish :
- MATTE TIN OVER NICKEL
- Package / Case :
- TO-206AA, TO-18-3 Metal Can
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 20 Weeks
- Operating Temperature :
- -65°C~200°C TJ
- Vce Saturation (Max) @ Ib, Ic :
- 500mV @ 50mA, 500mA
- Frequency - Transition :
- 100MHz
- Voltage - Collector Emitter Breakdown (Max) :
- 80V
- Datasheets
- 2N3700 PBFREE
NPN -65°C~200°C TJ 10nA ICBO TO-206AA, TO-18-3 Metal Can Bulk Through Hole
2N3700 PBFREE Overview
DC current gain' is equal to the ratio of the collector current to the base current, something like Ic/Ib, and this device has 100 @ 150mA 10V DC current gain.VCE saturation indicates Ic is at maximum level (saturated), whereas vce saturation (Max) indicates there is no saturation.Single BJT transistor shows a 80V maximal voltage - Collector EmSingle BJT transistorter Breakdown.
2N3700 PBFREE Features
the DC current gain for this device is 100 @ 150mA 10V
the vce saturation(Max) is 500mV @ 50mA, 500mA
2N3700 PBFREE Applications
There are a lot of Central Semiconductor Corp
2N3700 PBFREE applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
