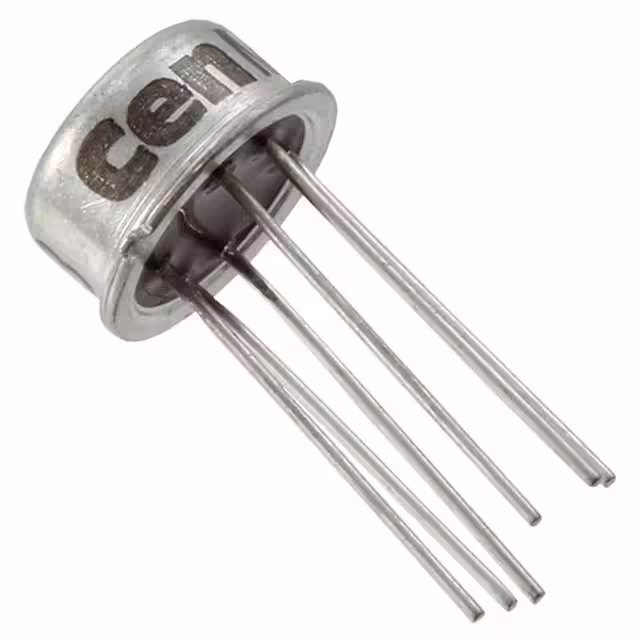

2N3810A

Manufacturer :

Central Semiconductor

Product Category :

Transistors - Bipolar (BJT) - Arrays

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Form :

Wire

JESD-609 Code :

e0

Polarity/Channel Type :

PNP

Pbfree Code :

No

Qualification Status :

Not Qualified

HTS Code :

8541.21.00.95

Terminal Position :

BOTTOM

Additional Feature :

LOW NOISE

Surface Mount :

No

Package / Case :

TO-78-6 Metal Can

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Vce Saturation (Max) @ Ib, Ic :

250mV @ 1mA, 100μA

DC Current Gain (hFE) (Min) @ Ic, Vce :

150 @ 1mA 5V

Number of Elements :

2

Published :

2013

JESD-30 Code :

O-MBCY-W6

Operating Temperature :

-65°C~200°C TJ

Transition Frequency :

100MHz

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Transistor Element Material :

SILICON

Current - Collector Cutoff (Max) :

10nA ICBO

Pin Count :

6

Reach Compliance Code :

not_compliant

Configuration :

SEPARATE, 2 ELEMENTS

Mounting Type :

Through Hole

Power - Max :

600mW

Frequency - Transition :

100MHz

Terminal Finish :

Tin/Lead (Sn/Pb)

RoHS Status :

Non-RoHS Compliant

Current - Collector (Ic) (Max) :

50mA

Number of Terminations :

6

Voltage - Collector Emitter Breakdown (Max) :

60V

Transistor Type :

2 PNP (Dual)

Packaging :

Bulk

Transistor Application :

AMPLIFIER
