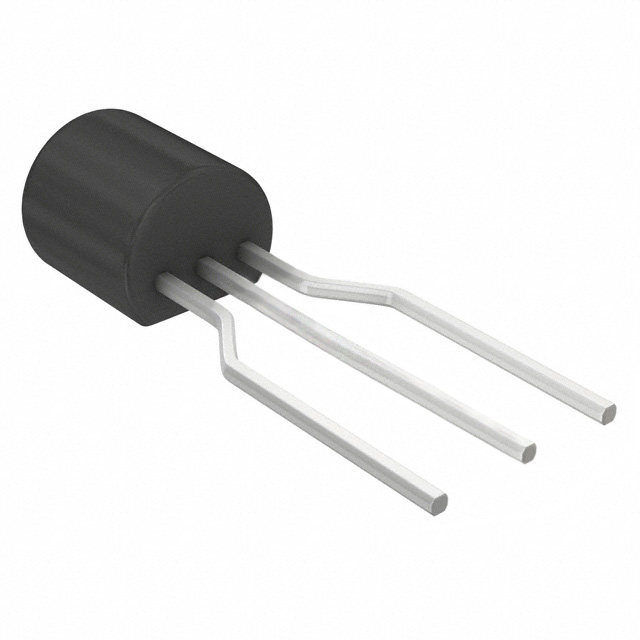

2SA1083-E-AP
Or copy the link below:
- Mfr.Part #
- 2SA1083-E-AP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Datasheet
- Download
- Description
- TRANS PNP 60V 0.1A TO92
- Stock
- 2,061
- In Stock ：
- 2,061
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Mounting Type :
- Through Hole
- Operating Temperature :
- -55°C~150°C TJ
- Packaging :
- Tape and Box (TB)
- Vce Saturation (Max) @ Ib, Ic :
- 200mV @ 1mA, 10mA
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 400 @ 2mA 12V
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Package / Case :
- TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Power - Max :
- 400mW
- Reach Compliance Code :
- Compliant
- Current - Collector (Ic) (Max) :
- 100mA
- Voltage - Collector Emitter Breakdown (Max) :
- 60V
- Current - Collector Cutoff (Max) :
- 100nA ICBO
- Transistor Type :
- PNP
- Frequency - Transition :
- 90MHz
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- RoHS Status :
- RoHS Compliant
- Datasheets
- 2SA1083-E-AP
PNP -55°C~150°C TJ 100nA ICBO TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) Tape & Box (TB) Through Hole
2SA1083-E-AP Overview
The DC current gain is the ratio of the base current to the collector current βdc = Ic/Ib and the DC current gain for this device is 400 @ 2mA 12V.Vce saturation means Ic is at its maximum value(saturated), and the vce saturation(Max) is 200mV @ 1mA, 10mA.A 60V maximal voltage - Collector Emitter Breakdown is present in the device.
2SA1083-E-AP Features
the DC current gain for this device is 400 @ 2mA 12V
the vce saturation(Max) is 200mV @ 1mA, 10mA
2SA1083-E-AP Applications
There are a lot of Micro Commercial Co
2SA1083-E-AP applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
