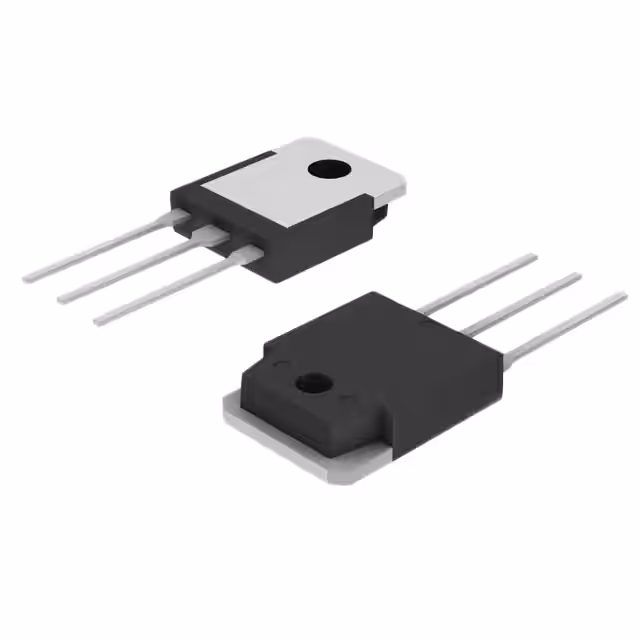

2SA1303
Or copy the link below:
- Mfr.Part #
- 2SA1303
- Manufacturer
- Sanken Electric Co., Ltd.
- Package / Case
- TO-3P-3, SC-65-3
- Datasheet
- Download
- Description
- TRANS PNP 150V 14A TO3P
- Stock
- 18,458
- In Stock ：
- 18,458
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sanken Electric Co., Ltd.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Max Collector Current :
- 14A
- ECCN Code :
- EAR99
- JESD-30 Code :
- R-PSFM-T3
- Qualification Status :
- Not Qualified
- Transistor Element Material :
- SILICON
- Configuration :
- Single
- Packaging :
- Bulk
- Series :
- -
- Package :
- Bulk
- Terminal Position :
- Single
- Current - Collector Cutoff (Max) :
- 100μA ICBO
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Pbfree Code :
- yes
- Package / Case :
- TO-3P-3, SC-65-3
- Transition Frequency :
- 50MHz
- Published :
- 2007
- Supplier Device Package :
- TO-3P
- Vce Saturation (Max) @ Ib, Ic :
- 2V @ 500mA, 5A
- Factory Lead Time :
- 24 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 50 @ 5A 4V
- Collector Emitter Breakdown Voltage :
- 150V
- Number of Terminations :
- 3
- RoHS Status :
- RoHS Compliant
- Product Status :
- Active
- Max Power Dissipation :
- 125W
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Power - Max :
- 125W
- Transistor Type :
- PNP
- Mount :
- Through Hole
- Pin Count :
- 3
- Transistor Application :
- AMPLIFIER
- Collector Emitter Voltage (VCEO) :
- 2V
- Frequency - Transition :
- 50MHz
- Operating Temperature :
- 150°C TJ
- Lead Free :
- Lead Free
- Polarity/Channel Type :
- PNP
- Voltage - Collector Emitter Breakdown (Max) :
- 150 V
- Number of Elements :
- 1
- Current - Collector (Ic) (Max) :
- 14 A
- Datasheets
- 2SA1303
PNP 150°C TJ 100μA ICBO 1 Elements 3 Terminations SILICON PNP TO-3P-3, SC-65-3 Bulk Through Hole
2SA1303 Overview
DC current gain in this device equals 50 @ 5A 4V, which is the ratio of the base current to the collector current.Saturation of VC means the Ic value is at its maximum, so vce saturation (Max) is 2V @ 500mA, 5A.As a result, the part has a transition frequency of 50MHz.Product comes in TO-3P supplier package.A negative maximal voltage - Collector Emitter Breakdown can be observed in the device.In extreme cases, the collector current can be as low as 14A volts.
2SA1303 Features
the DC current gain for this device is 50 @ 5A 4V
the vce saturation(Max) is 2V @ 500mA, 5A
a transition frequency of 50MHz
the supplier device package of TO-3P
2SA1303 Applications
There are a lot of Sanken
2SA1303 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
