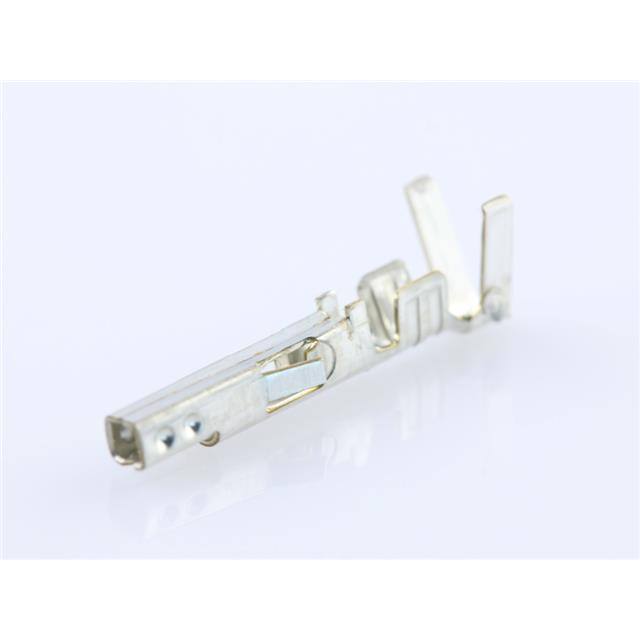

39-00-0114
Or copy the link below:
- Mfr.Part #
- 39-00-0114
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- NEW MINI FIT CONN TERM
- Stock
- 4,000
- In Stock ：
- 4,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Unclassified
- Additional Feature :
- CONTACT FINISH: TIN OVER NICKEL
- Packaging :
- Tape and Reel
- Cable Entry-Max :
- 0.122 inch
- Gender :
- Receptacle
- Wire Size :
- 24 to 18 AWG
- Manufacturer :
- Molex
- ECCN Code :
- EAR99
- Assembly Item Name :
- Contact
- Cable Entry-Min :
- 0.051 inch
- Product Depth (mm) :
- 3.6(mm)
- Reach Compliance Code :
- Compliant
- Body Orientation :
- Straight
- HTS Code :
- 8536.90.40.00
- Package :
- Box
- Product Length :
- 14.7 mm
- MIL Conformance :
- No
- Contact Material :
- Phosphor Bronze
- Used With :
- 5557 SERIES HOUSING
- Terminal Length :
- 0.1692 inch
- Product Length (mm) :
- 14.7(mm)
- Product Height (mm) :
- 4.5(mm)
- Shielded :
- No
- Series :
- *
- Contact Gender :
- SKT
- Contact Design :
- Chain
- Contact Type :
- Power
- Product Status :
- Active
- Material :
- Phosphor Bronze
- IEC Conformance :
- No
- Connector Support Type :
- CONNECTOR ACCESSORY
- Contact Style :
- SQUARE SOCKET
- Terminal Type :
- Crimp
- Mounting :
- Cable Mount
- Contact Plating :
- Tin
- DIN Conformance :
- No
- Mounting Style :
- CABLE
- Termination Method :
- Crimp
- Wire Gauge :
- 18-24(AWG)
- Current Rating (Max) :
- 9(A)
- Datasheets
- 39-00-0114
