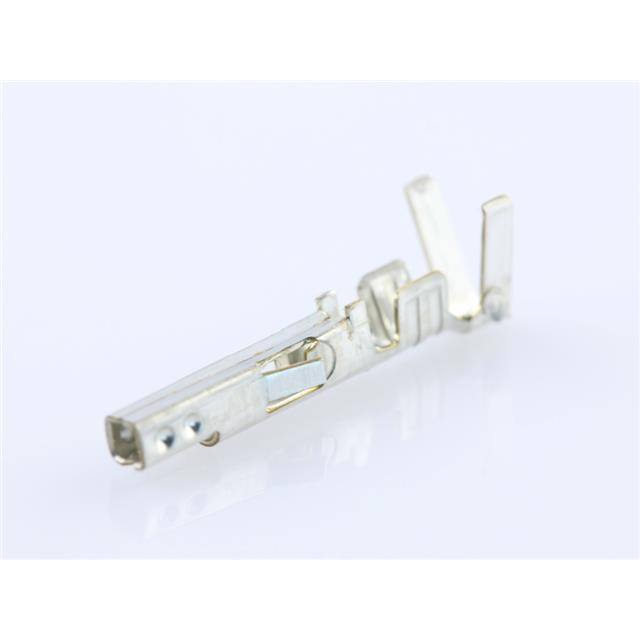

39-00-0157

Manufacturer :

Molex

Product Category :

Rectangular Connector Contacts

Packaging :

Tape and Reel

Product Depth (mm) :

3.6(mm)

Shielded :

No

Finish Thickness :

30

Wire Gauge :

16(AWG)

Voltage Rating :

600 V

IEC Conformance :

No

REACH SVHC :

Unknown

Contact Gender :

SKT

Plating :

Tin

Orientation :

Straight

Reach Compliance Code :

Compliant

Cable Entry-Max :

0.122 inch

Series :

*

Body Orientation :

Straight

Pitch :

3.5 mm

Mount :

CABLE

Contact Design :

Chain

Product Status :

Active

DIN Conformance :

No

MIL Conformance :

No

Assembly Item Name :

Contact

Shielding :

Unshielded

Current Rating (Max) :

9(A)

Country of Origin :

US

Product Height (mm) :

4.5(mm)

Wire/Cable Gauge :

16 AWG

RoHS :

Compliant

Connector Type :

Connector, PCB, Power

Current Rating :

9 A

Manufacturer :

Molex

Terminal Length :

0.169 inch

Material :

Phosphor Bronze

Termination Method :

Crimp

Contact Plating :

Gold Over Nickel

Termination :

Crimp

Terminal Type :

Crimp

Contact Type :

Power

Contact Style :

SQUARE SOCKET

Contact Material :

Phosphor Bronze

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Halogen Free :

Low Halogen

HTS Code :

8536.90.40.00

Mounting Style :

CABLE

Gender :

FEMALE

Product Length (mm) :

14.7(mm)

Connector Support Type :

CONNECTOR ACCESSORY

Max Current Rating :

9 A

Used With :

5557 SERIES HOUSING

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Additional Feature :

MATING:GOLD OVER NICKEL (50), TERMINATION: TIN (100) OVER NICKEL (50)

ECCN Code :

EAR99

Package :

Box
