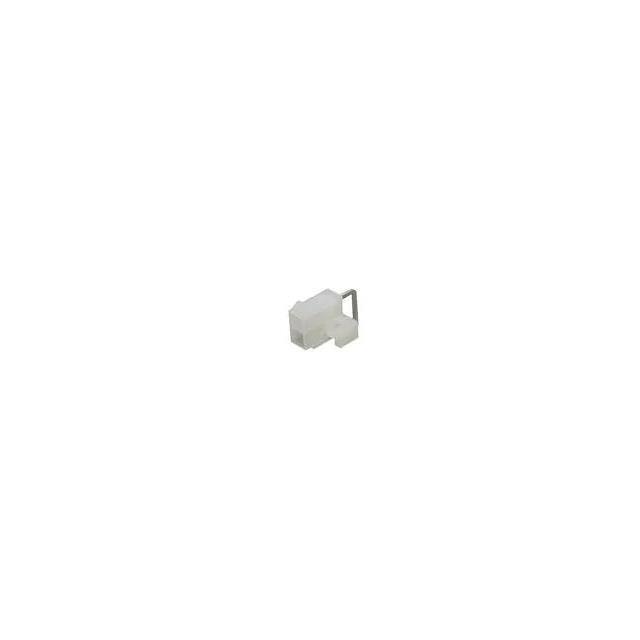

39-29-1028

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting Type :

Through Hole

Radiation Hardening :

No

Country of Origin :

PR

Operating Temp Range :

-40C to 105C

Voltage Rating (DC) :

600 V

Application :

Power

Number of Rows :

2

Product Status :

Active

Number of Pins :

2

Max Voltage Rating (DC) :

250 V

No. of rows :

2

Min. temperature :

-40°C

Insulation Resistance :

1 GΩ

Max Operating Temperature :

105 °C

Contact Resistance Max :

10(mohm)

Minimum Operating Temperature :

- 40 C

Product Diameter (mm) :

Not Required(mm)

Packaging type :

Bag

Product Depth (mm) :

19.4(mm)

RoHS :

Compliant

Base/Housing Material :

Nylon 66

Orientation :

RIGHT ANGLE

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Number of Contact Rows :

2

Contact Plating :

Tin

Gender :

Header

Number of Ports :

1(Port)

Case material :

Nylon (NL)

Mounting :

Through Hole

REACH SVHC :

Unknown

Nominal current - rounded value :

13A

Product Type :

Headers and Wire Housings

Max Current Rating :

5 A

Color :

Natural

Approvals :

CSA, TUV, UL

Mounting Angle :

RIGHT ANGLE

Number of Terminals :

2

Depth :

8.77 mm

Voltage Rating (AC) :

600 V

Contact Type :

-

Max. temperature :

+105°C

Manufacturer part # :

39291028

Product Length (mm) :

15.4(mm)

Product Height (mm) :

11.4(mm)

Mounting Style :

Through Hole

Operating Temperature Min Deg. C :

-40C

Product Category :

Headers and Wire Housings

ELV :

Compliant

Number of Positions :

2

Connection :

Soldering

Pitch :

4.2 mm

Material :

Brass

Maximum Operating Temperature :

+ 105 C

Height :

9.91 mm

Series :

MINI-FIT

Contact Resistance :

10 MΩ

Subcategory :

Headers and Wire Housings

Accessory Type :

-

Flammability :

94V-2

Operating Temperature :

-40 to 105 °C

CS :

4.2mm

Lead Pitch :

4.2 mm

Termination Method :

Solder

Halogen Free :

Low Halogen

Content :

1pc(s)

Glow Wire Compliant :

Non-Compliant

Schedule B :

8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/85

Lead Free :

Lead Free

Current Rating :

9 A

RoHS Status :

RoHS Compliant

Length :

13.65 mm

Board contact surface :

Tin

Connector contact surface :

Tin

Termination Style :

Solder Pin

Termination :

Solder

Total number of pins :

2

Lifecycle Status :

Production (Last Updated: 2 years ago)

Body Orientation :

RIGHT ANGLE

Nominal voltage :

600V

Number of Contacts :

2(POS)

Current Rating (Max) :

13/Contact(A)

Contact Material :

Brass

Connector System :

Wire to Board

Mount :

Surface Mount, Through Hole

Manufacturer :

Molex

Nominal current :

13A

Type :

Molex MOL Power and Signal Sol.

Min Operating Temperature :

-40 °C

Number of Circuits :

2

Pitch (mm) :

4.2(mm)

Tradename :

Mini-Fit Jr.

Product :

Headers

Flammability Rating :

UL94 V-2

Operating Temperature Max Deg. C :

105C

Voltage Rating :

600 V

Packaging :

Bag-packed

Contact Gender :

Male

Row Spacing :

5.5 mm

Voltage Rating Max :

600V

Features :

+ locking mechanism

Housing Material :

Polyamide 6/6

Package / Case :

Through Hole,P=4.2mm

Brand :

Molex

Product Length :

15.4 mm

Housing Color :

Natural

Termination Post Length :

3.5 mm
