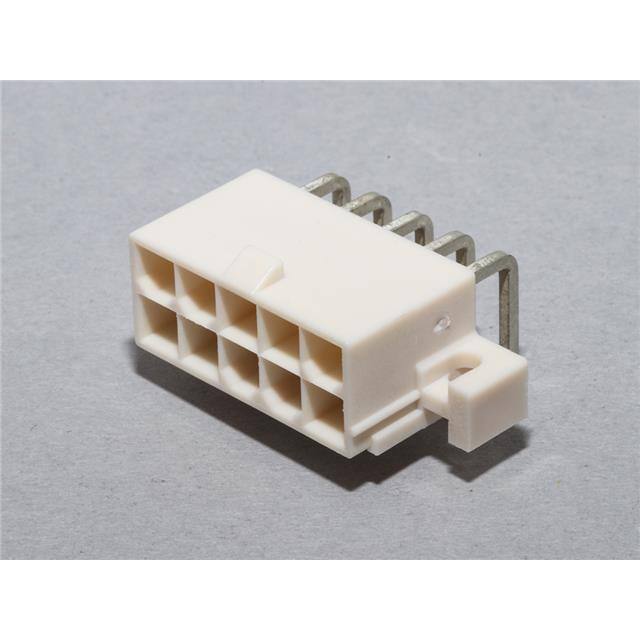

39-29-1107

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mixed Contacts :

No

Total Number of Contacts :

10

Product Status :

Active

Maximum Operating Temperature :

+ 105 C

Contact Plating :

Tin

Product Length :

32.2 mm

Reach Compliance Code :

Compliant

Body Breadth :

0.393 inch

Pitch :

4.2000 mm

Gender :

Header

Contact Style :

SQ PIN-SKT

Body Depth :

0.764 inch

Body Orientation :

RIGHT ANGLE

Mounting Angle :

RIGHT ANGLE

Insertion Force-Max :

14.6784 N

Termination Method :

Solder

Mounting :

Through Hole

Application :

Power

Product Type :

Headers and Wire Housings

Connector Type :

RECTANGULAR POWER CONNECTOR

Flammability Rating :

UL 94 V-0

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Flammability :

94V-0

Manufacturer :

Molex

Number of Rows :

2 Row

HTS Code :

8536.69.40.30

Mounting Style :

Through Hole

Factory Lead Time :

5 Weeks

Body/Shell Style :

Receptacle

Base/Housing Material :

Polyamide 66

Minimum Operating Temperature :

- 40 C

Shell Finish :

Tin

Row Spacing :

4.2 mm

Number of Positions :

10 Position

ECCN Code :

EAR99

Subcategory :

Headers and Wire Housings

Contact Finish Termination :

Tin/Copper (Sn/Cu)

Termination Post Length :

3.5 mm

Reference Standard :

UL

Termination Style :

Solder Pin

Empty Shell :

No

Pbfree Code :

yes

Contact Material :

Brass

Product :

Headers

Housing Color :

Natural

Additional Feature :

MINI-FIT JR, LOW PROFILE

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Contact Gender :

Pin (Male)

Orientation :

RIGHT ANGLE

Mounting Type :

BOARD

Filter Feature :

No

JESD-609 Code :

e2

Shell Material :

NYLON66

Termination Type :

Solder

Type :

Power

Operating Temperature :

-40 to 105 °C
