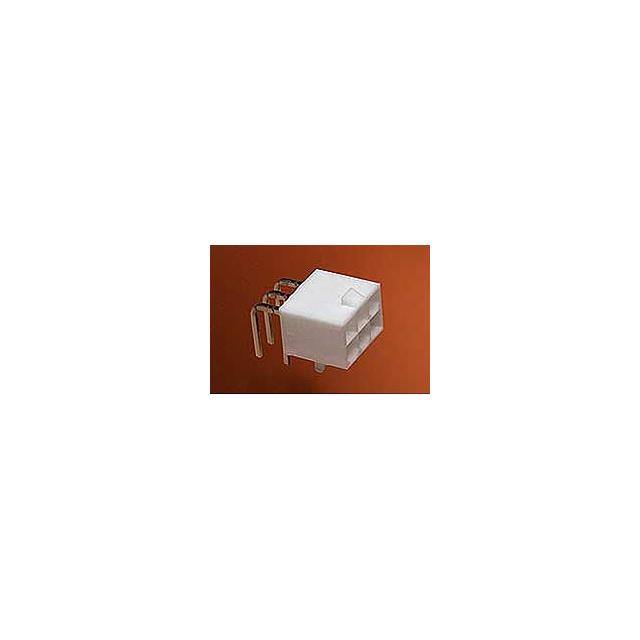

39-29-4249

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product Status :

Active

Number of Contacts :

24(POS)

Contact Type :

-

Body Breadth :

0.394 inch

Operating Temperature Max Deg. C :

105C

Contact Resistance :

10 MΩ

Body Orientation :

RIGHT ANGLE

Termination Method :

Solder

Number of Positions :

24 Position

Additional Feature :

MINI-FIT JR, LOW PROFILE

Dielectric Withstanding Voltage :

2200VAC V

Reach Compliance Code :

Compliant

Insulator Color :

Natural

Reliability :

COMMERCIAL

Product Diameter (mm) :

Not Required(mm)

Operating Temperature Min Deg. C :

-40C

Contact Gender :

Pin (Male)

Housing Color :

Natural

Terminal Length :

0.138 inch

Durability :

30 Cycles

Voltage Rating Max :

600V

Min Operating Temperature :

-40 °C

Terminal Pitch :

4.191 mm

Number of Ports :

1(Port)

Voltage Rating :

600 V

Package :

Box

Reference Standard :

UL

Contact Material :

Tin

Product :

Headers

Minimum Operating Temperature :

- 40 C

Product Depth (mm) :

19.94(mm)

IEC Conformance :

No

Housing Material :

Nylon

Flammability Rating :

UL 94 V-0

Plating :

Tin

RoHS :

Details

Body Depth :

0.764 inch

Current Rating :

13 A

Pitch (mm) :

4.2(mm)

Shell Material :

Nylon

DIN Conformance :

No

Termination Type :

Solder

Operating Temp Range :

-40C to 105C

Maximum Operating Temperature :

+ 105 C

Body/Shell Style :

Receptacle

Contact Plating :

Gold

Total Number of Contacts :

24

Country of Origin :

US

MIL Conformance :

No

Tradename :

Mini-Fit Jr.

Mounting Type :

BOARD

Current Rating (Max) :

13/Contact(A)

Product Height (mm) :

10(mm)

Withdrawl Force-Min :

.5004 N

Option :

GENERAL PURPOSE

Packaging :

Bulk

Contact Style :

SQ PIN-SKT

Contact Arrangement :

S0P24

Contact Finish Termination :

TIN OVER NICKEL

Gender :

HDR

Number of Contact Rows :

2

Max Operating Temperature :

105 °C

Pbfree Code :

yes

Orientation :

RIGHT ANGLE

Termination :

Through Hole

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

UL Flammability Code :

94V-0

Empty Shell :

No

Product Length (mm) :

51.6(mm)

Mounting Style :

Mounting Flange

Filter Feature :

No

Number of Terminals :

24

Mounting Option 1 :

LOCKING

Contact Resistance Max :

10(mohm)

Number of Rows :

2 Row

Pitch :

4.2 mm

Mount :

Through Hole

Type :

Power

Mixed Contacts :

No

Insertion Force-Max :

6.672 N

Termination Style :

Solder Pin

Connector Type :

RECTANGULAR POWER CONNECTOR

Insulation Resistance :

1000000000 Ω

Mounting Angle :

RIGHT ANGLE

Number of Circuits :

24

Series :

5569

Accessory Type :

-

Row Spacing :

4.2 mm
