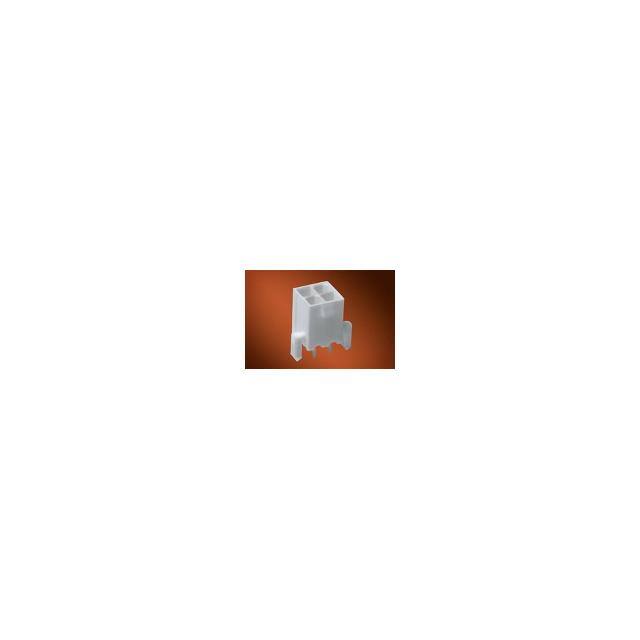

39-29-9165

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Application :

Power

Flammability Rating :

UL 94 V-2

Current Rating :

6 A

DIN Conformance :

No

Pitch :

4.2 mm

Durability :

30 Cycles

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body/Shell Style :

PLUG

Product :

Headers

HTS Code :

8536.69.40.30

Maximum Operating Temperature :

+ 105 C

RoHS :

Compliant

Number of Terminals :

16

Min Operating Temperature :

-40 °C

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Country of Origin :

US

IEC Conformance :

No

Tradename :

Mini-Fit Jr.

Mixed Contacts :

No

Number of Rows :

2

Terminal Length :

0.14 inch

Fastening Type :

Ramp

Mounting Type :

BOARD

Voltage Rating Max :

600V

Termination Post Length :

3.5 mm

Number of Circuits :

16

Termination Type :

Solder

Max Operating Temperature :

105 °C

Contact Arrangement :

S0P16

Minimum Operating Temperature :

- 40 C

Total Number of Contacts :

16

Current Rating (Max) :

9/Contact(A)

Body Breadth :

0.38 inch

Connector Type :

Male Pin

ECCN Code :

EAR99

Color :

Natural

Termination :

Solder

Lifecycle Status :

Production (Last Updated: 2 years ago)

Contact Plating :

Gold Over Nickel

Product Height (mm) :

12.8(mm)

Height :

13.3 mm

Product Status :

Active

Contact Style :

SQ PIN-SKT

Additional Feature :

Mini-Fit Jr.

Mounting Option 1 :

POLARIZED LCK

Gender :

HDR

Board Mounting Option :

PEG

Reference Standard :

CSA, UL

Filter Feature :

No

Product Type :

Headers and Wire Housings

Contact Gender :

Pin (Male)

Package :

Tray

Housing Material :

Nylon 6/6

Number of Positions :

16

Insulator Color :

Natural

Voltage Rating (DC) :

600 V

Contact Resistance Max :

10(mohm)

Contact Material :

Brass

JESD-609 Code :

e3

Manufacturer :

Molex

Mount :

Through Hole

Voltage Rating :

600 V

Option :

GENERAL PURPOSE

Product Category :

Headers and Wire Housings

Number of Ports :

1

Number of Contact Rows :

2

Number of Contacts :

16Power(POS)

Pbfree Code :

yes

Series :

5566

Contact Resistance :

10 MΩ

Reliability :

COMMERCIAL

Termination Method :

Solder

Flammability :

94V-2

Subcategory :

Headers and Wire Housings

Plating Thickness :

30u inch

Body Orientation :

Straight

UL Flammability Code :

94V-2

Pitch (mm) :

4.2(mm)

Shell Material :

POLYAMIDE66

Orientation :

Vertical

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Empty Shell :

No

Body Depth :

0.5 inch

Housing Color :

Natural

Mounting Style :

Through Hole

Lead Pitch :

4.2 mm

Mounting Angle :

Straight

Mounting Option 2 :

LOCKING

Insulation Resistance :

1 GΩ

Dielectric Withstanding Voltage :

1500VAC V

Packaging :

Tray

Termination Style :

Solder Pin

MIL Conformance :

No

Brand :

Molex

Type :

Wire to Board

Row Spacing :

4.191 mm

Reach Compliance Code :

Compliant

Operating Temp Range :

-40C to 105C
