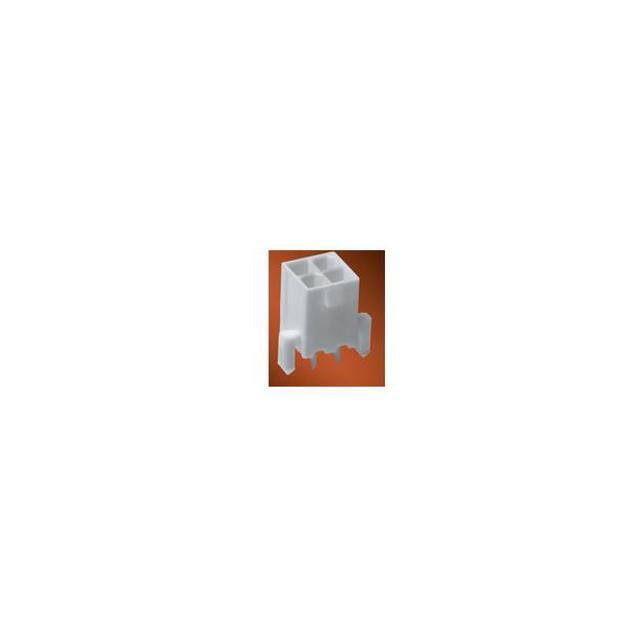

39-29-9245

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Max Voltage Rating (AC) :

600 V

Reference Standard :

CSA, UL

UL Flammability Code :

94V-2

Termination Post Length :

3.5 mm

Mating Contact Pitch :

0.165 inch

DIN Conformance :

No

Filter Feature :

No

Plating Thickness :

30u inch

RoHS :

Compliant

Reach Compliance Code :

Compliant

MIL Conformance :

No

Operating Temp Range :

-40C to 105C

Contact Finish Termination :

MATTE TIN (100) OVER NICKEL

Subcategory :

Headers and Wire Housings

Rated Current (Signal) :

6 A

Voltage Rating :

600 V

Option :

GENERAL PURPOSE

Product Height (mm) :

12.8(mm)

Body/Shell Style :

PLUG

Product Status :

Active

Type :

Wire to Board

Mounting Option 1 :

POLARIZED LCK

Connector Type :

Male Pin

Polarization Key :

HOUSING SIDE

Additional Feature :

Mini-Fit Jr.

Fastening Type :

Ramp

Body Depth :

0.504 inch

Product :

Headers

Color :

Natural

ECCN Code :

EAR99

Application :

Power

Contact Style :

SQ PIN-SKT

Number of Contact Rows :

2

Mixed Contacts :

No

Durability :

30 Cycles

Contact Gender :

Pin (Male)

Operating Temperature Max Deg. C :

105C

Mounting Angle :

Straight

Mounting :

Through Hole

Brand :

Molex

Termination Method :

Solder

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Product Diameter (mm) :

Not Required mm

Lifecycle Status :

Production (Last Updated: 2 years ago)

Total Number of Contacts :

24

Empty Shell :

No

Dielectric Withstanding Voltage :

1500VAC V

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Maximum Operating Temperature :

+ 105 C

Gender :

Header

Mounting Option 2 :

LOCKING

Reliability :

COMMERCIAL

Shell Material :

POLYAMIDE66

HTS Code :

8536.69.40.30

Max Operating Temperature :

105 °C

Pbfree Code :

yes

Number of Circuits :

24

Board Mounting Option :

PEG

Manufacturer :

Molex

Series :

5566

Number of Contacts :

24POWER(POS)

Packaging :

Tray

Pitch (mm) :

4.2(mm)

Operating Temperature :

-40 to 105 °C

Insulation Resistance :

1000000000 Ω

Mounting Style :

Through Hole

Contact Pattern :

RECTANGULAR

Pitch :

4.2000 mm

Housing Material :

Nylon 6/6

Termination Style :

Solder Pin

Operating Temperature Min Deg. C :

-40C

Orientation :

Vertical

Insertion Force-Max :

6.672 N

Flammability Rating :

UL 94 V-2

Minimum Operating Temperature :

- 40 C

Mounting Type :

BOARD

Contact Resistance :

10 MΩ

Terminal Length :

0.14 inch

JESD-609 Code :

e3

Contact Plating :

Gold

Voltage Rating Max :

600VDC/600VAC

Withdrawl Force-Min :

3.1136 N

Contact Resistance Max :

10(mohm)

Mount :

Through Hole

Flammability :

94V-2

Number of Rows :

2

Terminal Pitch :

4.191 mm

Body Orientation :

Straight

Row Spacing :

4.191 mm

PCB Contact Row Spacing :

5.5118 mm

Product Category :

Headers and Wire Housings

Number Of PCB Rows :

2

Contact Type :

-

Height :

13.3 mm

Number of Terminals :

24

Product Type :

Headers and Wire Housings

Housing Color :

Natural

Termination :

Solder

Current Rating :

6 A

Number of Positions :

24

Min Operating Temperature :

-65 °C

Accessory Type :

-

Contact Material :

Brass

Package :

Tray

Current Rating (Max) :

9/Contact(A)

Body Breadth :

0.38 inch

Factory Lead Time :

5 Weeks

Base/Housing Material :

Nylon 66

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Termination Type :

Solder

Tradename :

Mini-Fit Jr.

Number of Ports :

1 Port

Country of Origin :

US

Mating Contact Row Spacing :

0.165 inch
