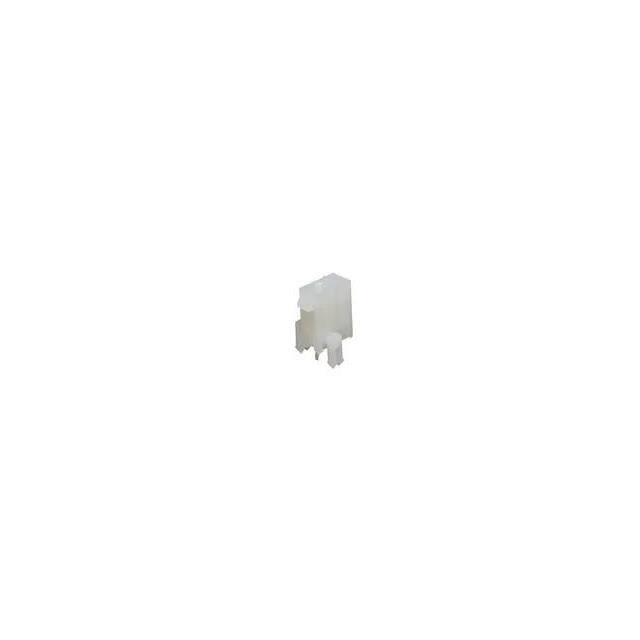

39-30-6025

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Accessory Type :

-

Max Operating Temperature :

105 °C

ECCN Code :

EAR99

Orientation :

Vertical

Contact Resistance Max :

10(mohm)

Empty Shell :

No

Housing Color :

Natural

Row Spacing :

4.191 mm

Connector Type :

Male Pin

HTS Code :

8536.69.40.30

Color :

Natural

Filter Feature :

No

Number of Ports :

1

DIN Conformance :

No

Pitch (mm) :

Not Required(mm)

Subcategory :

Headers and Wire Housings

Minimum Operating Temperature :

- 40 C

Reach Compliance Code :

Compliant

Voltage Rating :

600 V

Termination Type :

Solder

Number of Positions :

2

Product Type :

Headers and Wire Housings

Termination Method :

Solder

Shell Material :

Nylon

Mixed Contacts :

No

Product Status :

Active

Number of Contacts :

2Power(POS)

Mounting Angle :

Straight

Termination Style :

Solder Pin

Current Rating :

9 A

Gender :

Header

Min Operating Temperature :

-40 °C

Body Orientation :

Straight

Packaging :

Tray

Package :

Bulk

Fastening Type :

Ramp

Series :

5566

Number of Circuits :

2

Operating Temperature :

-40 to 105 °C

Current Rating (Max) :

9/Contact(A)

Number of Contact Rows :

2

Contact Plating :

Tin

Country of Origin :

MX

Product Height (mm) :

12.8(mm)

RoHS :

Compliant

Product Category :

Headers and Wire Housings

Operating Temp Range :

-40C to 105C

Termination :

Solder

Voltage Rating Max :

600V

Termination Post Length :

3.5 mm

Total Number of Contacts :

2

Contact Material :

Brass

Contact Gender :

Pin (Male)

Contact Type :

-

Manufacturer :

Molex

Flammability Rating :

UL 94 V-2

Pitch :

4.2000 mm

Schedule B :

8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/8536694040/85

Number of Terminals :

2

Mounting Type :

BOARD

Flammability :

94V-2

Housing Material :

Nylon 6/6

Application :

Power

Mounting :

Through Hole

Maximum Operating Temperature :

+ 105 C

Product :

Headers

Pbfree Code :

yes

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Plating :

Tin

MIL Conformance :

No

Brand :

Molex

Tradename :

Mini-Fit Jr.

Number of Rows :

2

UL Flammability Code :

94V-2

Radiation Hardening :

No

Type :

Wire to Board

Lifecycle Status :

Production (Last Updated: 2 years ago)

Base/Housing Material :

Nylon

Mounting Style :

Through Hole

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Mount :

Through Hole

IEC Conformance :

No
