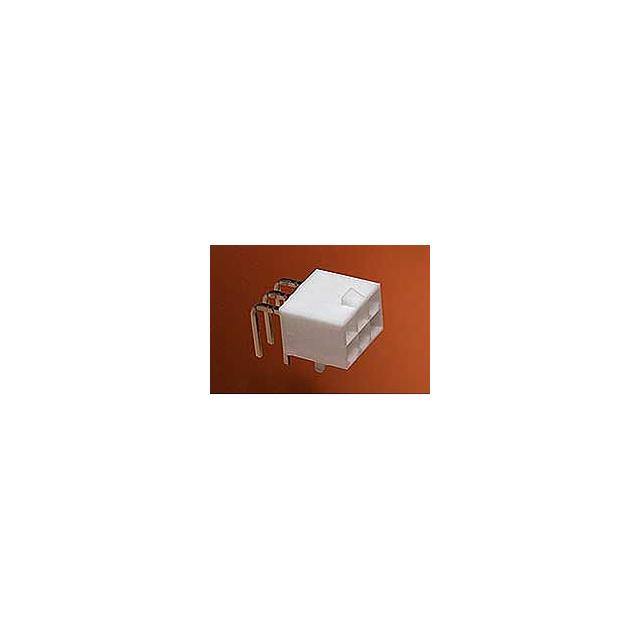

39-30-7086

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Package :

Box

Mating Contact Pitch :

0.165 inch

Voltage Rating Max :

600V

Mixed Contacts :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Filter Feature :

No

Current Rating (Max) :

13/Contact(A)

Insulator Color :

Natural

Connector Type :

RECTANGULAR POWER CONNECTOR

Number Of PCB Rows :

2

Product Diameter (mm) :

Not Required(mm)

Mount :

Through Hole

Max Operating Temperature :

105 °C

Plating Thickness :

100u inch

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Operating Temperature Min Deg. C :

-40C

Reference Standard :

CSA,TUV,UL

Min Operating Temperature :

-40 °C

Number of Circuits :

8

Type :

Wire to Board

Mounting Style :

Through Hole

Product Depth (mm) :

12.8(mm)

Operating Temperature Max Deg. C :

105C

Pitch :

4.2 mm

Shell Material :

POLYAMIDE66

Contact Style :

SQ PIN-SKT

Body Depth :

0.764 inch

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Product Height (mm) :

10(mm)

Body Orientation :

RIGHT ANGLE

MIL Conformance :

No

Orientation :

RIGHT ANGLE

Glow Wire Compliant :

Non-Compliant

Dielectric Withstanding Voltage :

1500VAC V

Mating Contact Row Spacing :

0.165 inch

Empty Shell :

No

Insertion Force-Max :

14.6784 N

Operating Temp Range :

-40C to 105C

Number of Contact Rows :

2

Gender :

HDR

Reach Compliance Code :

Compliant

PCB Contact Pattern :

RECTANGULAR

Voltage Rating :

600 V

Contact Resistance :

10 MΩ

Termination :

Solder

Packaging :

Bag

Contact Plating :

Gold

Number of Terminals :

8

IEC Conformance :

No

ECCN Code :

EAR99

Pitch (mm) :

4.2(mm)

Additional Feature :

Mini-Fit Jr

Current Rating :

8 A

Terminal Length :

0.142 inch

Contact Gender :

Male

Total Number of Contacts :

8

Number of Contacts :

8

Subcategory :

Headers and Edge Type Connectors

Series :

*

Halogen Free :

Low Halogen

RoHS :

Compliant

Housing Material :

Nylon

Polarization Key :

POLARIZED HOUSING

Termination Type :

Solder

Number of Ports :

1(Port)

Manufacturer :

Molex

DIN Conformance :

No

Country of Origin :

US

PCB Contact Row Spacing :

5.5118 mm

Body/Shell Style :

PLUG

Durability :

30 Cycles

Insulation Resistance :

1000000000 Ω

Board Mounting Option :

PEG

Product Status :

Active

Withdrawl Force-Min :

.4726 N

Number of Rows :

2

Terminal Pitch :

4.191 mm

Product Length (mm) :

18(mm)

Contact Material :

Brass

Mounting Type :

BOARD

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Row Spacing :

5.5 mm

Termination Method :

Solder

Rated Current (Signal) :

8 A

HTS Code :

8536.69.40.30

Body Breadth :

0.378 inch
