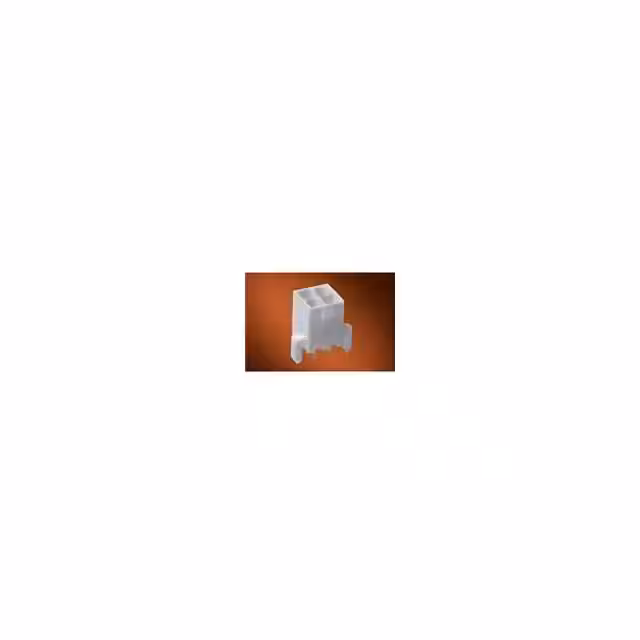

39-30-9046

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination Type :

Solder

Number of Rows :

2 Row

PCB Contact Row Spacing :

5.5118 mm

Contact Style :

SQ PIN-SKT

Manufacturer :

Molex

Insertion Force-Max :

6.672 N

Polarization Key :

POLARIZED HOUSING

Empty Shell :

No

Row Spacing :

4.2 mm

Dielectric Withstanding Voltage :

1500VAC V

Shell Material :

POLYAMIDE66

Contact Gender :

Pin (Male)

Packaging :

Bag

Body/Shell Style :

Receptacle

ECCN Code :

EAR99

Insulation Resistance :

1000000000 Ω

Mounting Style :

Through Hole

Pbfree Code :

yes

Mounting Angle :

Straight

Total Number of Contacts :

4

Voltage Rating Max :

600VDC/600VAC

Withdrawl Force-Min :

.3892 N

Reliability :

COMMERCIAL

Reference Standard :

CSA,TUV,UL

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Body Breadth :

0.433 inch

Gender :

HDR

Number of Contacts :

4(POS)

DIN Conformance :

No

UL Flammability Code :

94V-2

Termination Style :

Solder Pin

Operating Temperature Min Deg. C :

-40C

Termination Method :

Solder

Contact Pattern :

RECTANGULAR

Mating Contact Row Spacing :

0.165 inch

Brand :

Molex

Number of Ports :

1(Port)

Subcategory :

Headers and Wire Housings

MIL Conformance :

No

Product Category :

Headers and Wire Housings

Contact Resistance :

10 MΩ

Application :

Power, Wire-to-Board

Mounting Type :

BOARD

Pitch :

4.2 mm

Contact Type :

-

Housing Material :

Nylon 6/6

Product Depth (mm) :

11(mm)

Housing Color :

Natural

Connector Type :

RECTANGULAR POWER CONNECTOR

Operating Temp Range :

-40C to 105C

Pitch (mm) :

4.2(mm)

Terminal Pitch :

4.191 mm

Accessory Type :

-

Number of Terminals :

4

Contact Material :

Brass

Mating Contact Pitch :

0.165 inch

Voltage Rating :

600 V

Product Length (mm) :

10(mm)

Filter Feature :

No

Series :

5566

Product :

Headers

Body Depth :

0.504 inch

Contact Plating :

Gold Over Nickel

Product Diameter (mm) :

Not Required(mm)

Number Of PCB Rows :

2

Mounting Option 1 :

LOCKING

Tradename :

Mini-Fit Jr.

Number of Positions :

4 Position

Product Status :

Active

Reach Compliance Code :

Compliant

Product Type :

Headers and Wire Housings

Plating Thickness :

15u inch

Operating Temperature Max Deg. C :

105C

Maximum Operating Temperature :

+ 105 C

Mounting Option 2 :

Friction Lock

Product Height (mm) :

12.8(mm)

JESD-609 Code :

e3

Termination Post Length :

3.5 mm

Rated Current (Signal) :

8 A

Body Orientation :

Straight

Terminal Length :

0.138 inch

PCB Contact Pattern :

RECTANGULAR

RoHS :

Details

Mixed Contacts :

No

Minimum Operating Temperature :

- 40 C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Durability :

30 Cycles

Type :

Power

Option :

GENERAL PURPOSE

IEC Conformance :

No

HTS Code :

8536.69.40.30

Package :

Bulk
