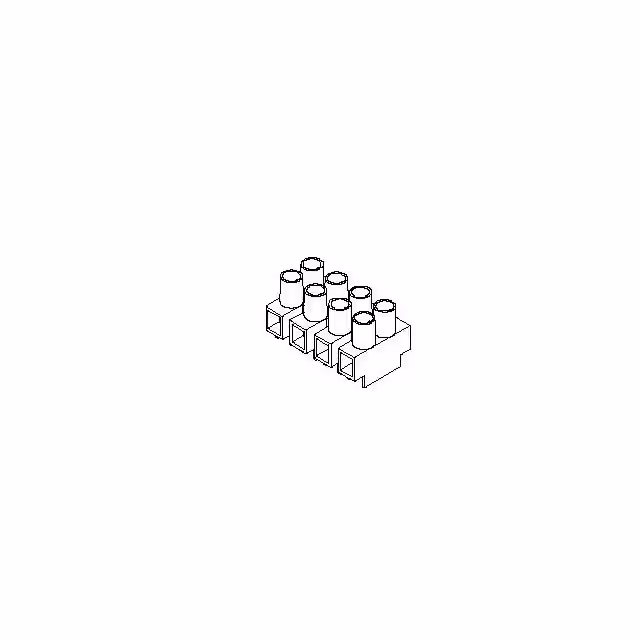

39100-0811

Manufacturer :

Molex

Product Category :

Barrier Blocks

Number of Contact Rows :

2

Number of Rows :

2

Contact Pitch (mm) :

8(mm)

Pbfree Code :

yes

Series :

*

Termination Method :

Screw

Operating Voltage (Max) :

600V

Gender :

F

HTS Code :

8536.69.40.40

Fastening Method :

Screw

Additional Feature :

NYLON, UL 94V-2

Reach Compliance Code :

Unknown

ECCN Code :

EAR99

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Safety Approval :

UL; CSA

Wire Gauge :

12-22(AWG)

Manufacturer :

Molex

Housing Color :

Clear

Product Depth (mm) :

17.3(mm)

Rated Current :

20 A

Type :

Eurostyle Block

Contact Plating :

Nickel/Zinc

Body Orientation :

RIGHT ANGLE

Product Status :

Active

Current Rating (Max) :

20/Contact(A)

Number of Contacts :

22(POS)

Mounting Style :

Panel

Housing Material :

Nylon 6/6

Product Length (mm) :

85.47(mm)

Rated Voltage :

300 V

Product Height (mm) :

18.2(mm)

Rad Hardened :

No

Number of Ways :

11

Contact Material :

Brass/Steel

Number of Decks :

1

Package :

Box
