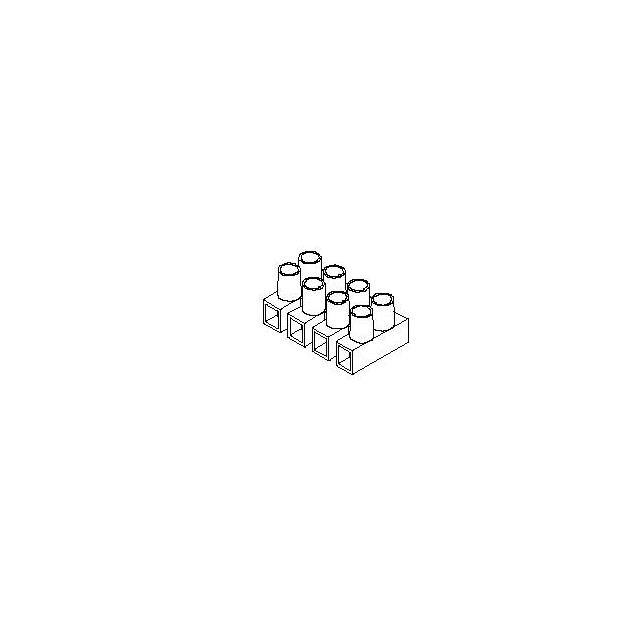

39100-1102

Manufacturer :

Molex

Product Category :

Barrier Blocks

Series :

*

Rated Current :

30 A

Gender :

PL

Manufacturer :

Molex

Current Rating (Max) :

30/Contact(A)

Additional Feature :

NYLON, UL 94V-2, LOW PROFILE

Housing Color :

Clear

Contact Plating :

Nickel

Product Status :

Active

Safety Approval :

UL; CSA

Rated Voltage :

300 V

Number of Contacts :

4(POS)

ECCN Code :

EAR99

Product Height (mm) :

15.7(mm)

Body Orientation :

Straight

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Number of Rows :

2

Number of Contact Rows :

2

Contact Material :

Brass

Housing Material :

Nylon 6/6

Fastening Method :

Screw

Termination Method :

Screw

Contact Pitch (mm) :

10(mm)

Wire Gauge :

10-18(AWG)

Product Length (mm) :

17(mm)

Type :

Eurostyle Block

Package :

Box

Mounting Style :

CABLE

Product Depth (mm) :

18.8(mm)

Number of Ways :

2

Pbfree Code :

yes

Rad Hardened :

No

Operating Voltage (Max) :

300V

Reach Compliance Code :

Unknown

HTS Code :

8536.69.40.40

Number of Decks :

1
