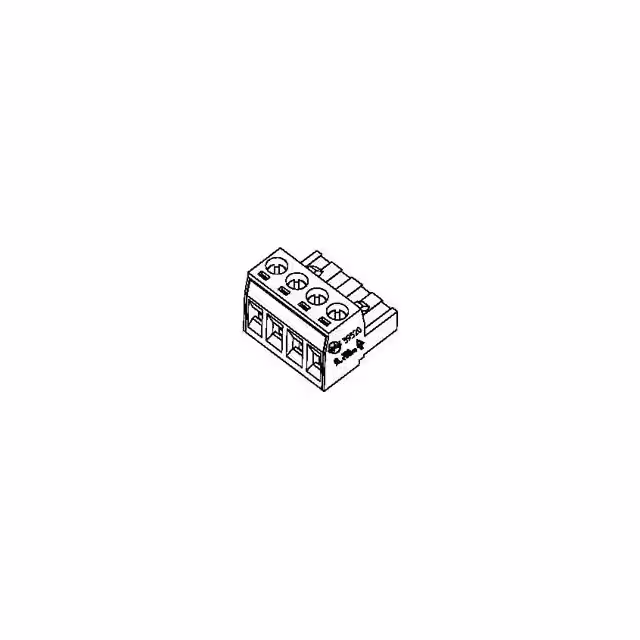

39520-0022

Manufacturer :

Molex

Product Category :

Headers, Plugs and Sockets

Product Height (mm) :

15(mm)

Rated Voltage :

300 V

Current Rating (Max) :

18/Contact(A)

Product Depth (mm) :

18.2(mm)

Product Type :

Pluggable Terminal Blocks

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

RoHS :

Details

Reach Compliance Code :

Compliant

Contact Plating :

Tin

Gender :

F

Contact Material :

Phosphor Bronze

Type :

Eurostyle Block

Mounting Type :

CABLE

Mounting Style :

CABLE

Rated Current :

15 A

Body Orientation :

RIGHT ANGLE

Housing Color :

Black

Series :

39520

Brand :

Molex

Rad Hardened :

No

Mounting Angle :

Horizontal

Operating Voltage (Max) :

300V

Number of Positions :

22 Position

Number of Contact Rows :

1

Product :

Plugs

Housing Material :

Polyamide 6/6

Number of Rows :

1

Pitch :

5 mm

Current Rating :

18 A

Number of Ways :

22

Voltage Rating :

300 V

Number of Contacts :

22(POS)

Product Category :

Pluggable Terminal Blocks

Package :

Box

HTS Code :

8536.69.40.40

Product Length (mm) :

110(mm)

Product Status :

Active

Subcategory :

Terminal Blocks

Wire Gauge :

12-26(AWG)

Termination Method :

Screw

Manufacturer :

Molex

Number of Decks :

1

Operating Temp Range :

-40C to 105C

Connection Method :

Screw

ECCN Code :

EAR99

Contact Pitch (mm) :

5(mm)

Termination Style :

Screw

Tradename :

Eurostyle

Additional Feature :

PA66

Fastening Method :

Screw
