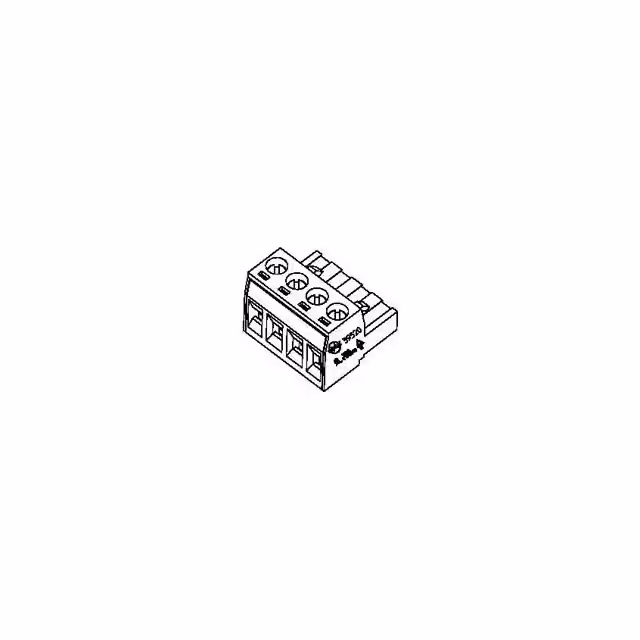

39520-0102

Manufacturer :

Molex

Product Category :

Headers, Plugs and Sockets

Additional Feature :

PA66

Rad Hardened :

No

Termination Style :

Screw

Termination :

Screw

Mounting Type :

CABLE

Operating Voltage (Max) :

300V

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Mounting Angle :

Horizontal

Packaging :

Bulk

Voltage Rating :

300 V

Pitch :

5 mm

Rated Current :

15 A

HTS Code :

8536.69.40.40

Housing Color :

Black

Fastening Method :

Screw

Contact Pitch (mm) :

5(mm)

Product Height (mm) :

15(mm)

Mount :

CABLE

Type :

Eurostyle Block

Number of Rows :

1

Manufacturer :

Molex

Product Type :

Pluggable Terminal Blocks

Operating Temp Range :

-40C to 105C

RoHS :

Details

Number of Positions :

2 Position

Rated Voltage :

300 V

Orientation :

Horizontal

Product :

Plugs

Connection Method :

Screw

Number of Ways :

2

Number of Contact Rows :

1

Wire Gauge :

12-30(AWG)

Product Length (mm) :

10(mm)

Reach Compliance Code :

Unknown

Product Category :

Pluggable Terminal Blocks

Tradename :

Eurostyle

Wire Gauge (Max) :

12 AWG

Min Operating Temperature :

-40 °C

Number of Contacts :

2(POS)

Housing Material :

Polyamide 6/6

ECCN Code :

EAR99

Wire Gauge (Min) :

26 AWG

Termination Method :

Screw

Subcategory :

Terminal Blocks

Product Depth (mm) :

18.2(mm)

Current Rating (Max) :

18/Contact(A)

Mounting Style :

CABLE

Lifecycle Status :

Production (Last Updated: 2 years ago)

Package :

Box

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Current Rating :

18 A

Contact Material :

Phosphor Bronze

Max Operating Temperature :

105 °C

Series :

39520

Gender :

F

Contact Plating :

Tin

Number of Decks :

1

Number of Circuits :

2

Country of Origin :

CN

Brand :

Molex

Product Status :

Active

Body Orientation :

RIGHT ANGLE
