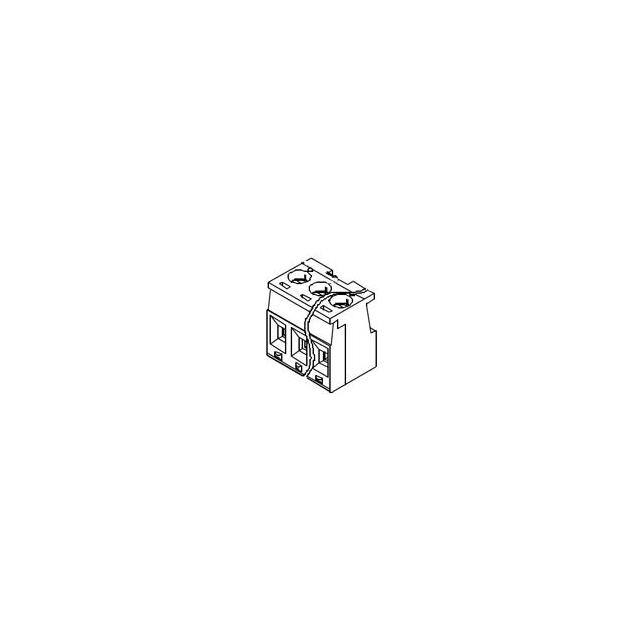

39980-0307

Manufacturer :

Molex

Product Category :

Headers, Plugs and Sockets

Type :

Eurostyle Block

Mounting Style :

CABLE

Housing Material :

Polyamide 6/6

Safety Approval :

UL

HTS Code :

8536.69.40.40

Length :

36.32 mm

Insulation Resistance :

5 GΩ

Number of Decks :

1

Mount :

Cable, Surface Mount

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Pitch :

5.08 mm

Country of Origin :

US

Tradename :

Eurostyle

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Series :

39980

Connection Method :

Screw

Package :

Box

Contact Plating :

Tin/Zinc Chromate

Additional Feature :

LATCHED, POLARIZED, POLYAMIDE, 94V-0

RoHS :

Compliant

Wire Gauge (Min) :

24 AWG

Number of Contact Rows :

1

Rated Voltage :

300 V

Termination Style :

Screw

Termination Method :

Screw

Mounting Type :

CABLE

Rad Hardened :

No

Number of Ways :

7

Current Rating :

10 A

Manufacturer :

Molex

Contact Material :

Brass

Flammability Rating :

UL94 V-0

Subcategory :

Terminal Blocks

Brand :

Molex

Orientation :

Vertical

Voltage Rating :

300 V

Material :

Nylon

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Body Orientation :

Straight

Depth :

15.7 mm

Product Status :

Active

Operating Voltage (Max) :

300V

Rated Current :

10 A

Product Length (mm) :

36.02(mm)

Number of Positions :

7

Product Depth (mm) :

14.22(mm)

Termination :

Screw

Product :

Plugs

Product Category :

Pluggable Terminal Blocks

Housing Color :

Black

Width :

14.2 mm

ECCN Code :

EAR99

Color :

Black

Fastening Method :

Screw

Number of Rows :

1

Pbfree Code :

yes

Number of Circuits :

7

Wire Cross Section :

2.5 mm2

Packaging :

Bulk

Reach Compliance Code :

Compliant

Gender :

F

Contact Pitch (mm) :

5.08(mm)

Wire Gauge :

12-24(AWG)

Product Height (mm) :

15.75(mm)

Mounting Angle :

Vertical

Number of Contacts :

7(POS)

Wire Gauge (Max) :

12 AWG

Max Voltage Rating (AC) :

300 V

Product Type :

Pluggable Terminal Blocks

Current Rating (Max) :

10/Contact(A)
