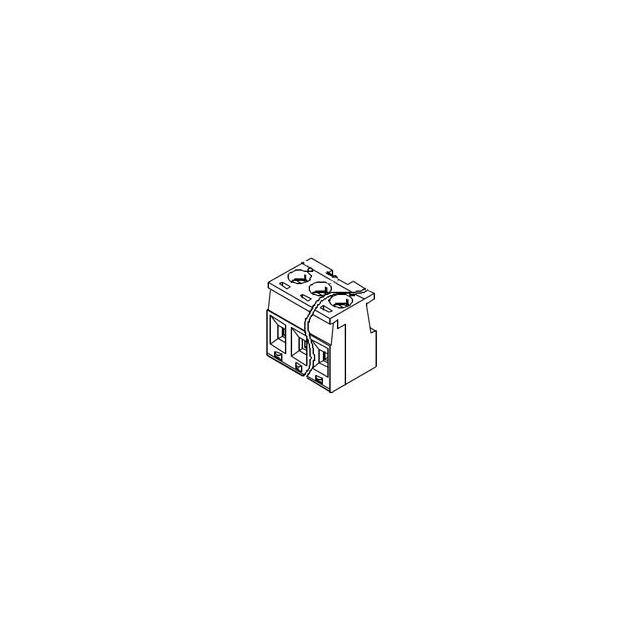

39980-0412
Or copy the link below:
- Mfr.Part #
- 39980-0412
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- NEO 5.08MM PCB HDR S98 STY15 CKT
- Stock
- 312
- In Stock ：
- 312
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Plugs and Sockets
- Panel Mount :
- No
- Mixed Contacts :
- No
- Type :
- Euro Block
- Component Type :
- PCB Header
- JESD-609 Code :
- e3
- Additional Feature :
- POLARIZED
- Halogen Free :
- Low Halogen
- Product Category :
- Pluggable Terminal Blocks
- Connection Method :
- -
- Body Orientation :
- Straight
- Terminal Pitch :
- 5.08 mm
- Voltage Rating :
- 300 V
- Reach Compliance Code :
- Compliant
- DIN Conformance :
- No
- Housing Color :
- Black
- RoHS :
- Details
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Packaging :
- Bulk
- Color :
- Black
- HTS Code :
- 8536.69.40.40
- Product Length (mm) :
- 61.72(mm)
- Plating :
- Tin
- Contact Plating :
- Tin
- Contact Gender :
- Male
- Series :
- 39980
- Material :
- Nylon
- Orientation :
- Vertical
- Contact Pitch (mm) :
- 5.08(mm)
- Product Length :
- 61.72 mm
- Mounting Style :
- Through Hole
- Number of Circuits :
- 12
- ELV :
- Compliant
- Brand :
- Molex
- Termination Method :
- Solder
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- ECCN Code :
- EAR99
- Contact Material :
- Brass
- REACH SVHC :
- No SVHC
- Base/Housing Material :
- Nylon
- Number of Contacts :
- 12(POS)
- Number of Poles :
- 12
- Flammability Rating :
- UL 94 V-0
- IEC Conformance :
- No
- Termination :
- Solder
- Total Number of Contacts :
- 12
- Mounting Angle :
- Vertical
- Subcategory :
- Terminal Blocks
- Pitch (mm) :
- 5.08 mm
- Contact Finish Termination :
- Tin (Sn)
- Product :
- Headers
- Filter Feature :
- No
- Country of Origin :
- US
- Product Type :
- Pluggable Terminal Blocks
- Product Height (mm) :
- 17.78(mm)
- Termination Type :
- Solder
- Housing Material :
- Nylon
- Mounting :
- Through Hole
- Operating Voltage (Max) :
- 300V
- Number of Rows :
- 1
- MIL Conformance :
- No
- Current Rating :
- 10 A
- Current Rating (Max) :
- 10/Contact(A)
- Option :
- GENERAL PURPOSE
- Number of Contact Rows :
- 1
- Connector Type :
- BOARD CONNECTOR
- Product Depth (mm) :
- 15.72(mm)
- Manufacturer :
- Molex
- Voltage Rating Max :
- 300V
- Gender :
- Header
- Mounting Type :
- BOARD
- UL Flammability Code :
- 94V-0
- Pbfree Code :
- yes
- Pitch :
- 5.0800 mm
- Product Status :
- Active
- Mount :
- Through Hole
- Rad Hardened :
- No
- Package :
- Box
- Tradename :
- Eurostyle
- Number of Positions :
- 12 Position
- Termination Style :
- Solder Pin
- Datasheets
- 39980-0412
