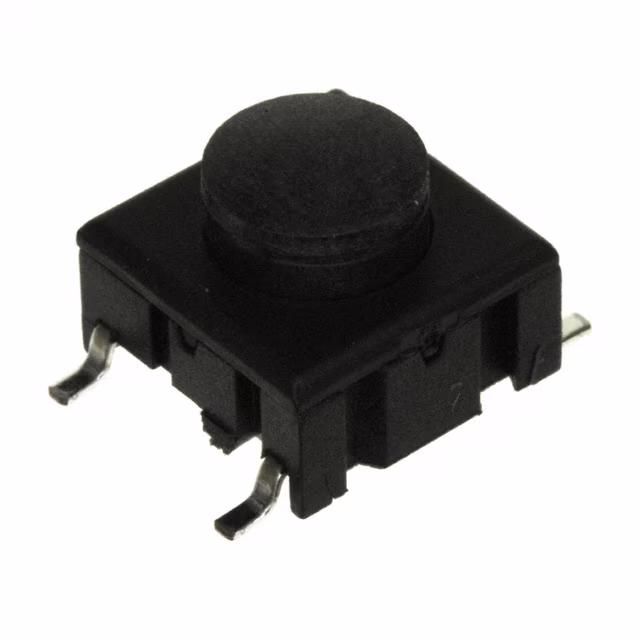

3ESH9-08.0

Manufacturer :

MEC switches

Product Category :

Pole Throw Configuration :

SPST

Operating Force :

3(N)

Switch Function Configuration :

N.O.

Product Length (mm) :

10.1(mm)

Actuator Length (mm) :

2.9(mm)

Actuator Color :

Black

IP Rating :

IP67

Itar Registered :

No

Illumination Type :

Not Required

Product Height (mm) :

8(mm)

Contact Form :

SPST

Illumination Color :

-

Tradename :

multimec

Termination Style :

Gull Wing Lead

Actuator Style :

Round Button

Terminal Type :

Gull wing

Height :

8 mm

Mounting Style :

SMD/SMT

Voltage Rating (VDC) :

24(V)

Contact Material :

Gold

Color :

Black

Length :

9.1 mm

Lamp Type :

-

Operating Temp Range :

-40C to 160C

Body Orientation :

Straight

Width :

9.1 mm

Contact Plating :

Silver

Actuator :

Round

ECCN :

EAR99

Series :

3E

Current Rating :

50 mA

RoHS :

Details

Current Rating (Max) :

0.05(A)

Power Rating :

-

Switch Function :

OFF - (ON)

Product Depth (mm) :

14(mm)
