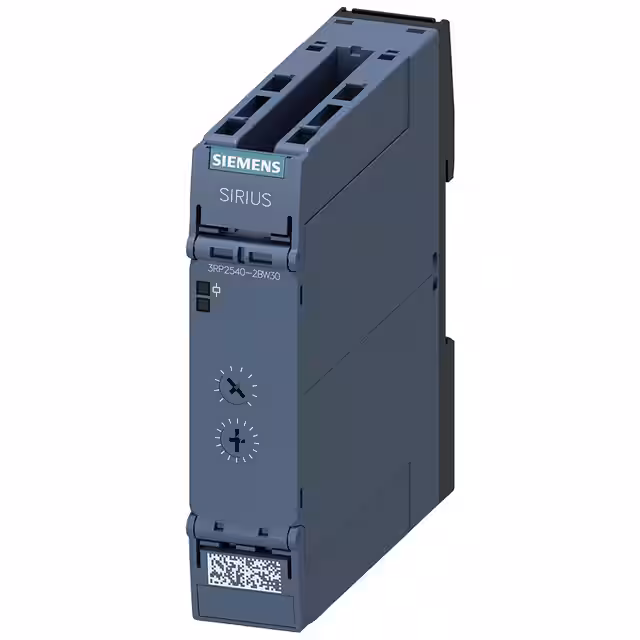

3RP25402BW30

Manufacturer :

Siemens

Product Category :

Time Delay Relays

Switch Configuration :

DPDT

Type of electric connection :

Spring clamp connection

Product Status :

Active

Height :

100mm

Relay Type :

Mechanical Relay

Voltage type for actuating :

AC/DC

Min. temperature :

-25°C

Rated control supply voltage at DC :

12 - 240

Voltage - Supply :

12 ~ 240VAC/DC

Timing Initiate Method :

Input Voltage

Series :

3RP25

Max. operating voltage :

240V

Rated control supply voltage at AC 60 Hz :

12 - 240

Type :

3RP2540-2BW30

Max. temperature :

+60°C

Time Delay :

250ms

Reach Compliance Code :

Unknown

Durability :

1000 0000

Contact Material :

AgSnO2

RoHS-compliant :

yes

Timing Adjustment Method :

Screwdriver Slot

Function :

Off-Delay

Maximum Operating Temperature :

+60°C

Min. operating voltage :

12V

Circuit :

DPDT (2 Form C)

Rated control supply voltage at AC 50 Hz :

12 - 240

Delay Time :

0.05 Sec ~ 600 Sec

Contact Configuration :

DPDT

Contact Rating @ Voltage :

3A @ 250VAC

Length :

90mm

Width :

22.5

Supply Voltage :

12 → 240V ac/dc

Termination Style :

Spring Terminal

Terminal Type :

Cage Clamp

Manufacturer :

Siemens

Number of Contacts :

2

Content :

1pc(s)

Electrical lifespan :

100000

Base Product Number :

3RP2540

Mode of Operation :

Off Delay

Minimum Operating Temperature :

-25°C

Mounting Type :

DIN Rail

Dim :

(W x H x D) 22.5 x 100 x 90 mm

Depth :

90mm
